Power Seat (Driver's Seat): Notes

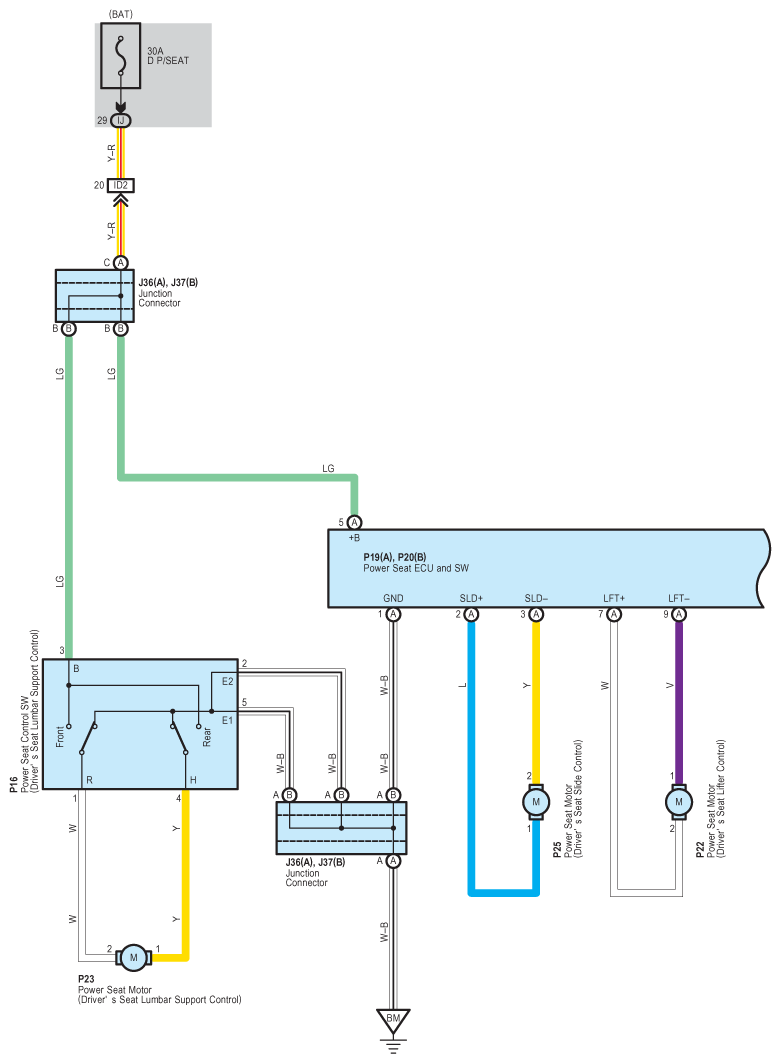

Fig 1: Power Seat (Driver's Seat) - Circuit Diagram (1 Of 3)
G07619917Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

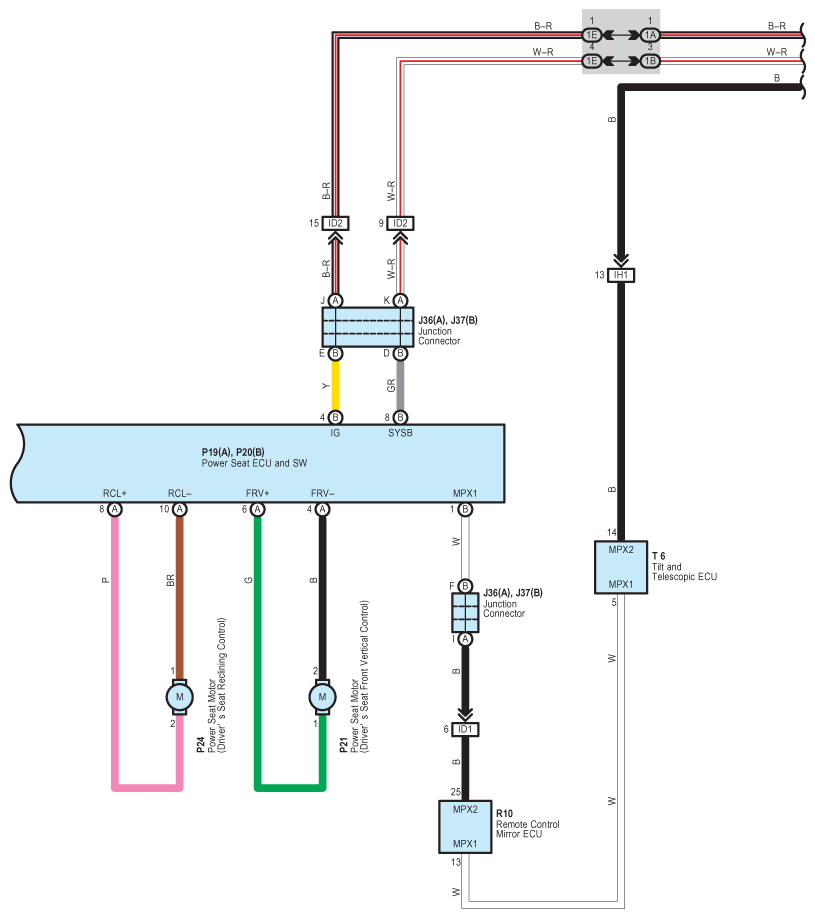

Fig 2: Power Seat (Driver's Seat) - Circuit Diagram (2 Of 3)
G07619918Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

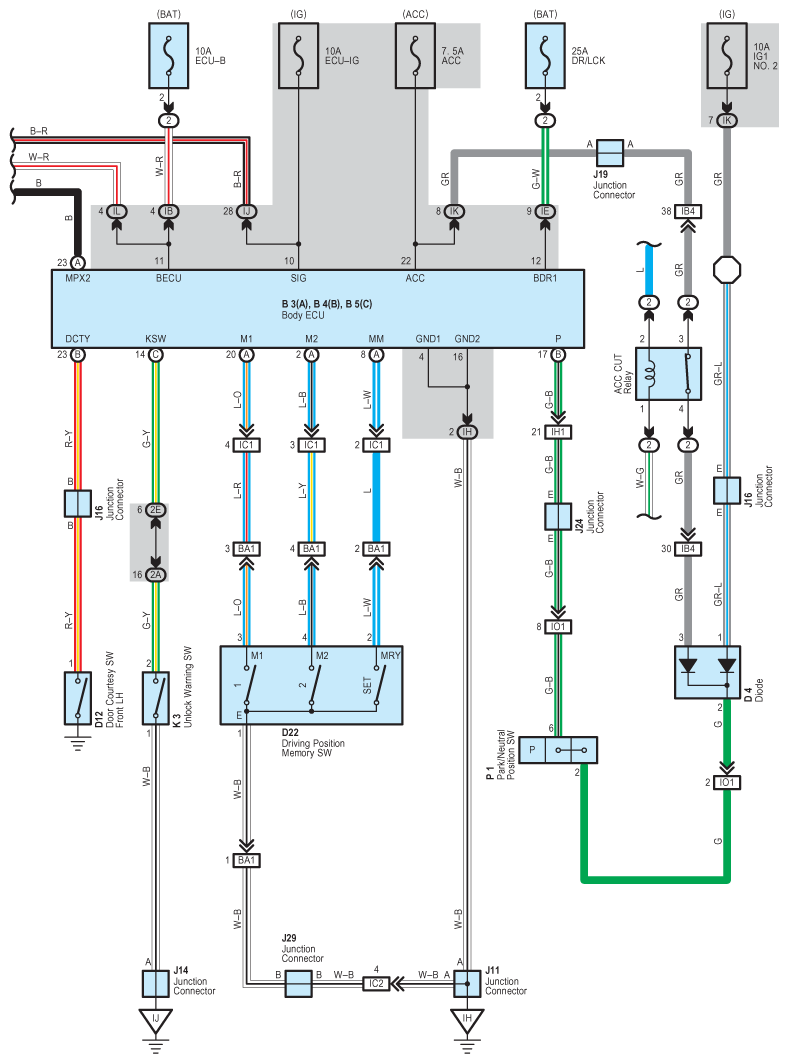

Fig 3: Power Seat (Driver's Seat) - Circuit Diagram (3 Of 3)
G07619919Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
