Rear Power Window LH Auto Up / Down Function Does Not Operate With Rear Power Window Switch LH: Wiring Diagram

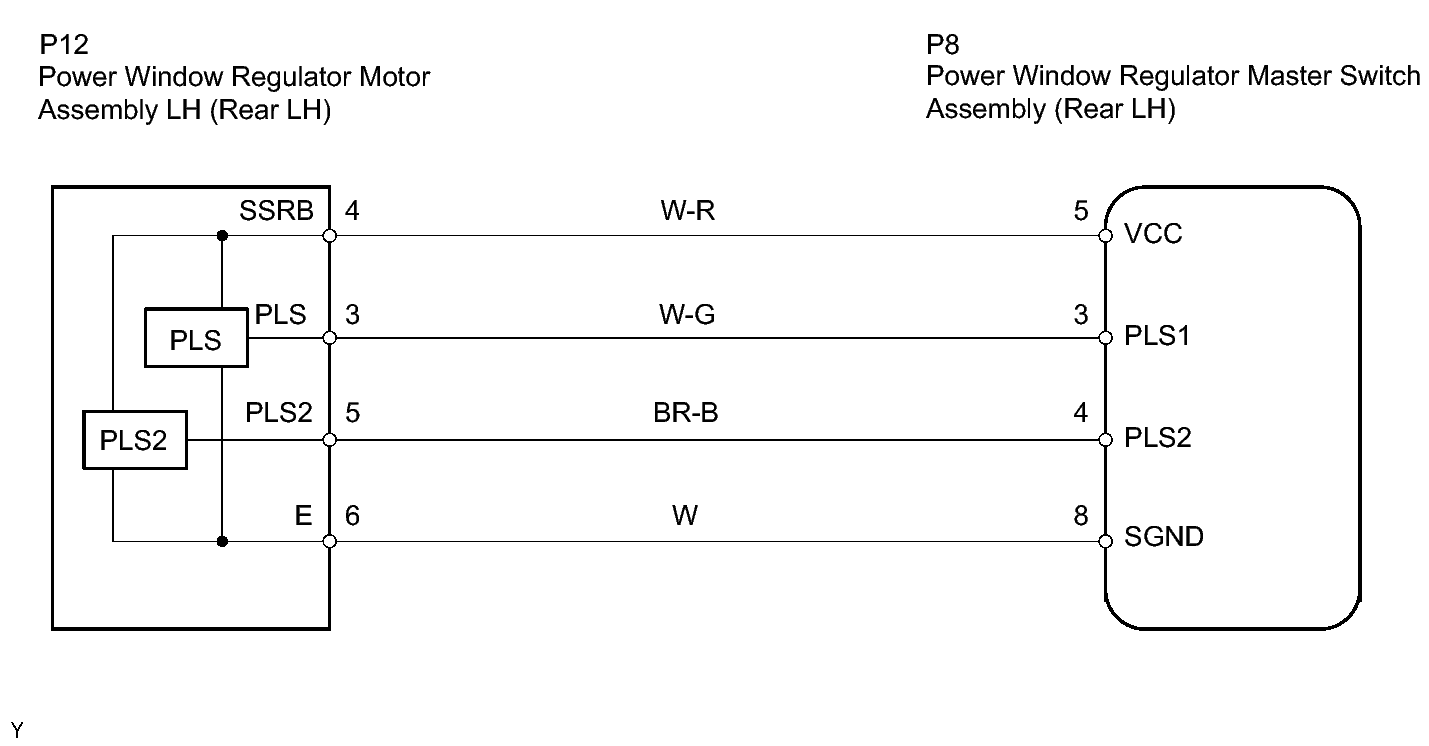

Fig 1: Identifying Power Window Regulator Motor Wiring Diagram
GTY120586Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
