Manual Up / Down Function Does Not Operate On Rear LH Only: Wiring Diagram

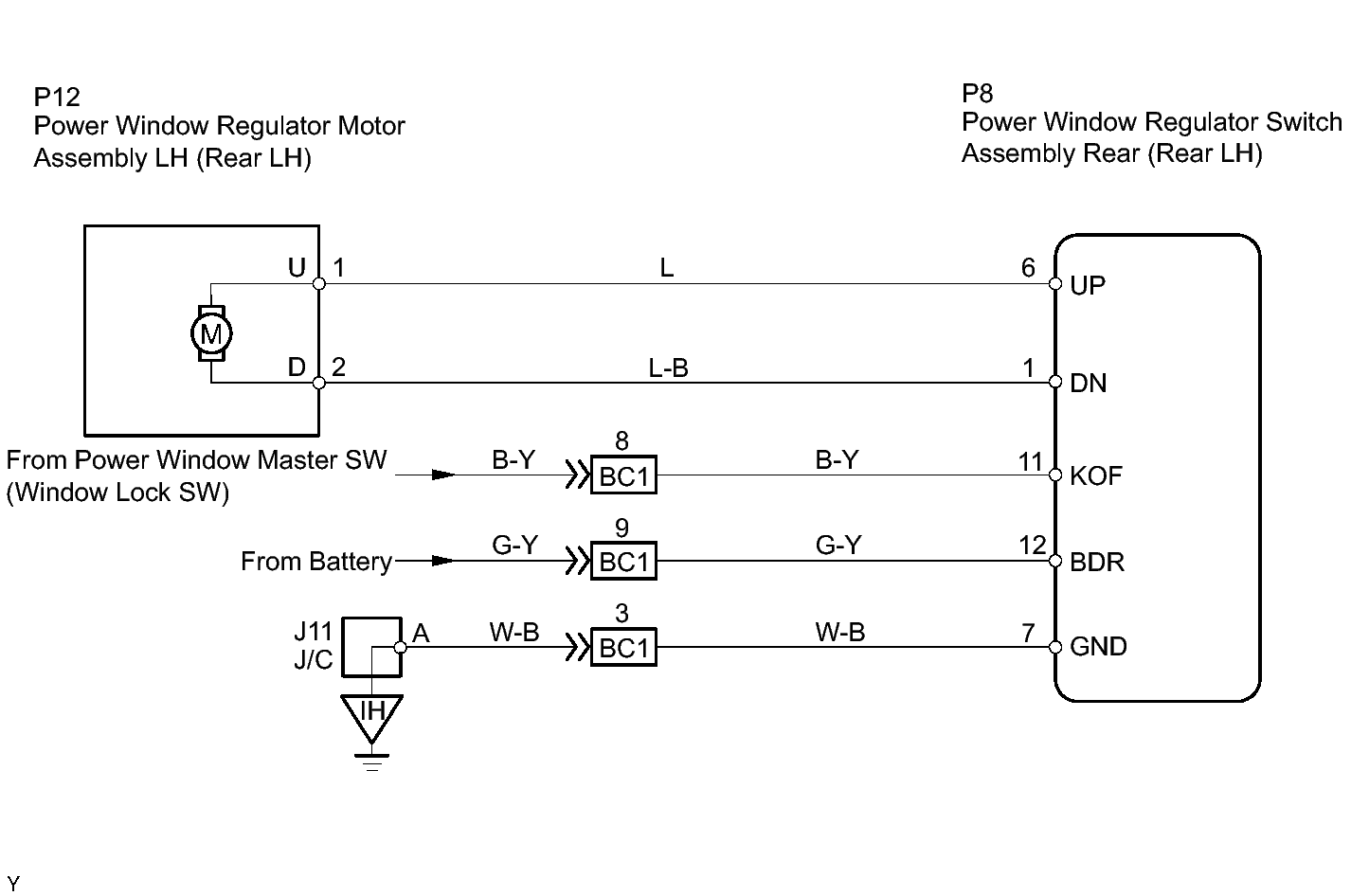

Fig 1: Identifying Power Window Regulator Motor Wiring Diagram

GTY120553

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
