Rear Power Window LH Does Not Operate with Rear Power Window Switch LH: Wiring Diagram

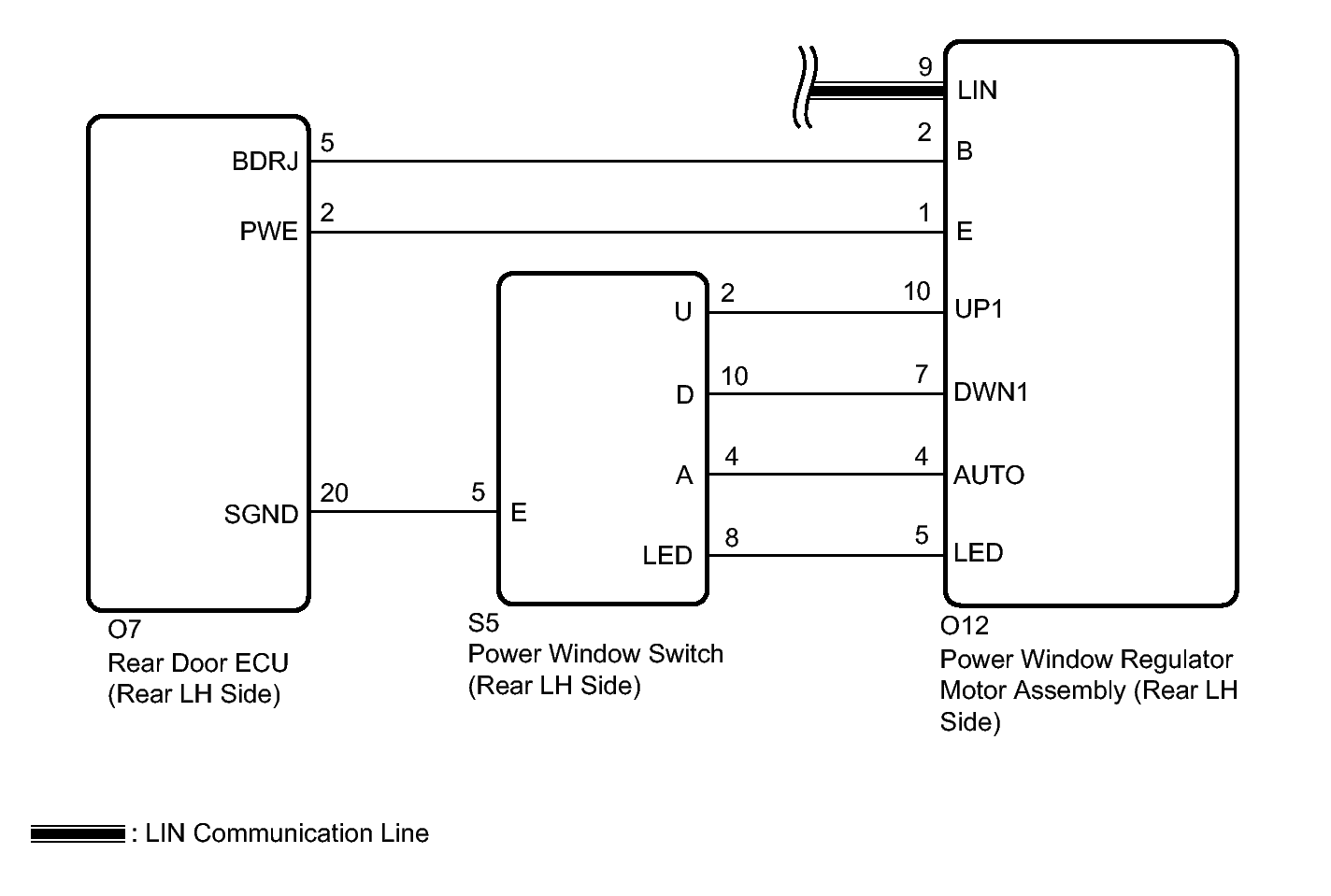

Fig 1: View Of Power Window Switch Malfunction Wiring Diagram (Rear LH Side)
GTY137175Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
