Cruise Control System: Components: Illustration

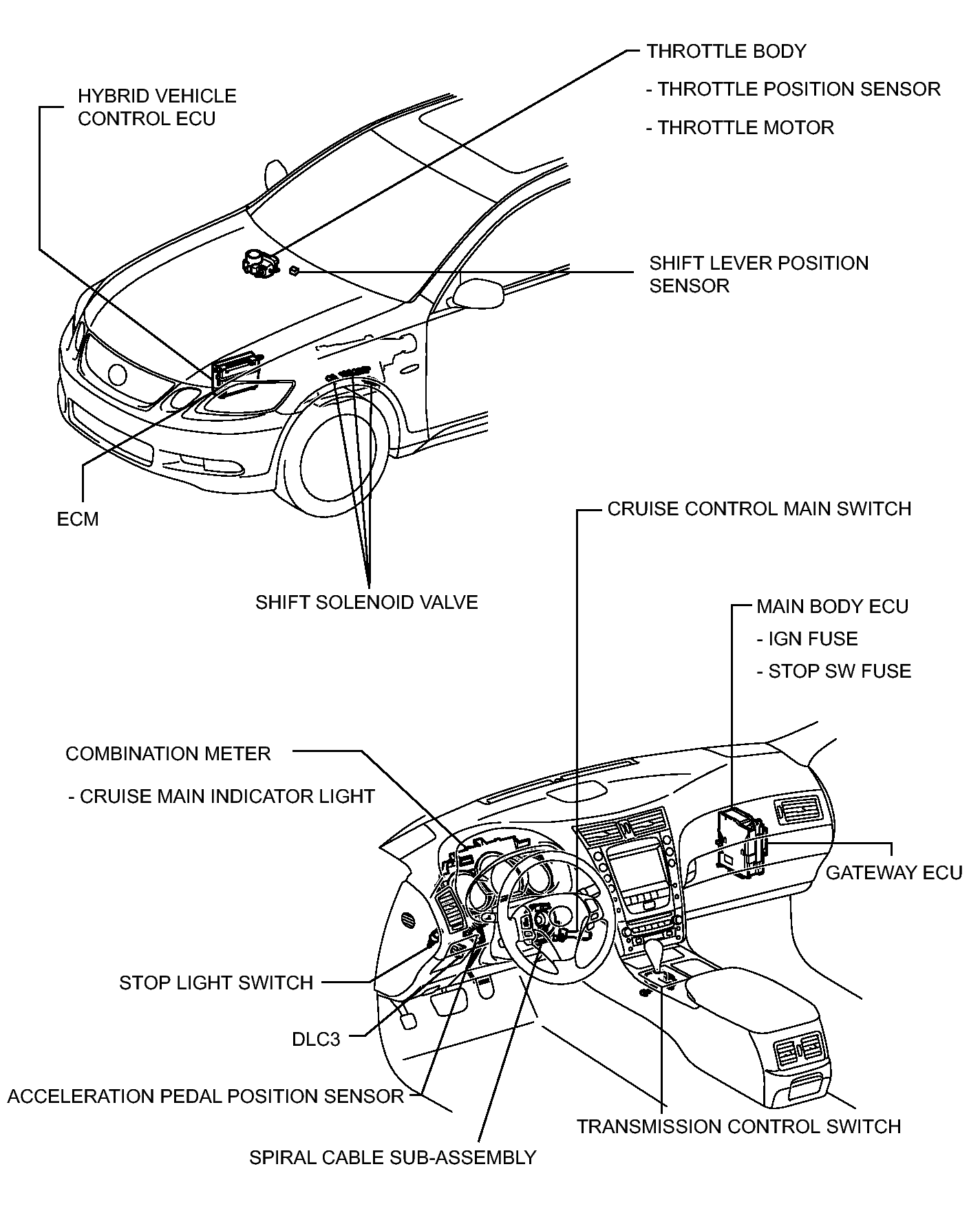

Fig 1: Identifying Cruise Control System Replacement Components

GTY152213

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
