Parts Location: Illustration

WARNING: This page is about a different car, the 2009 Lexus GS 460. However, it is still accessible from the selected car via links, so may be relevant.

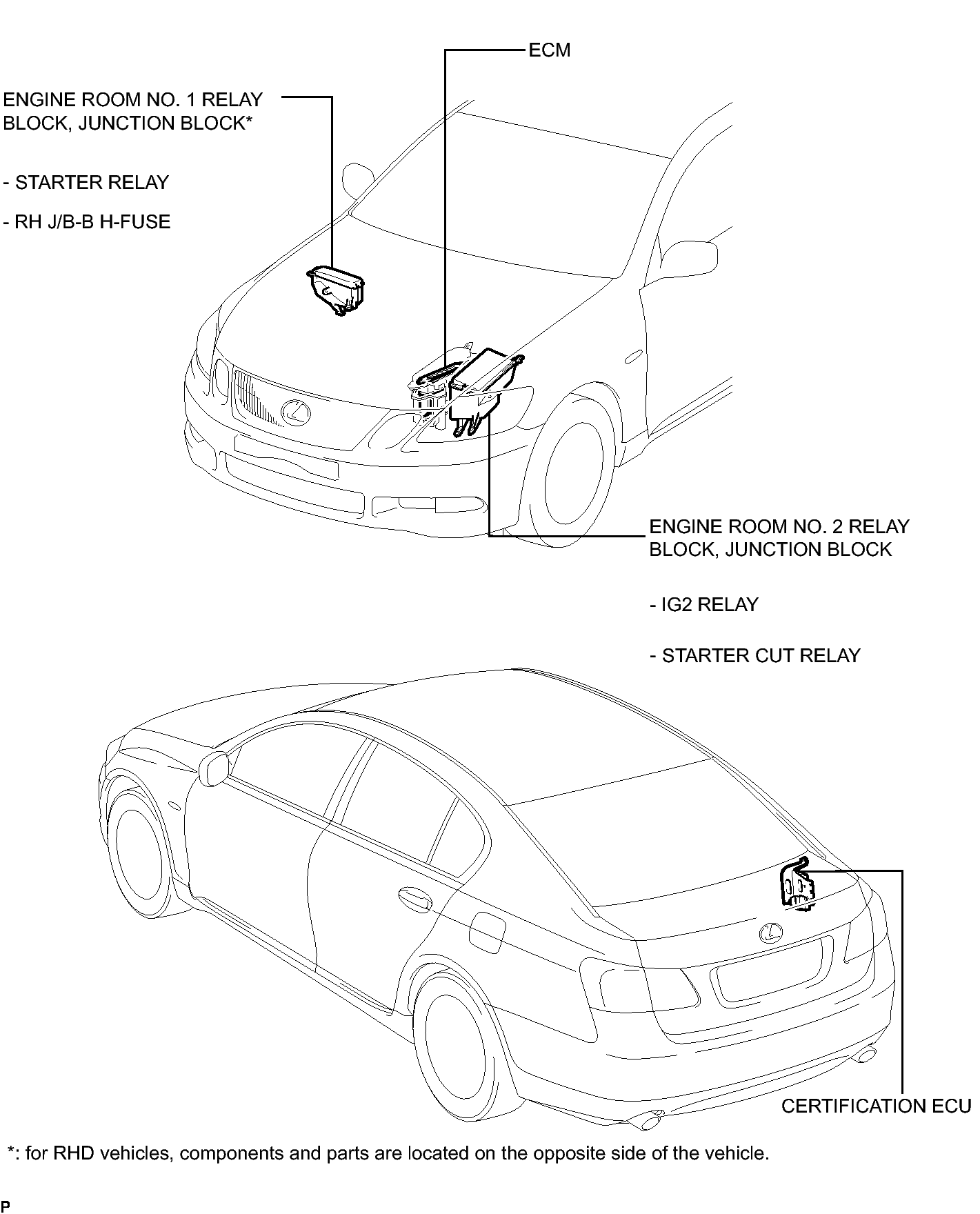

Fig 1: Identifying Smart Access System With Push-Button Start Parts Location (1 Of 3)
GTY104759Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002


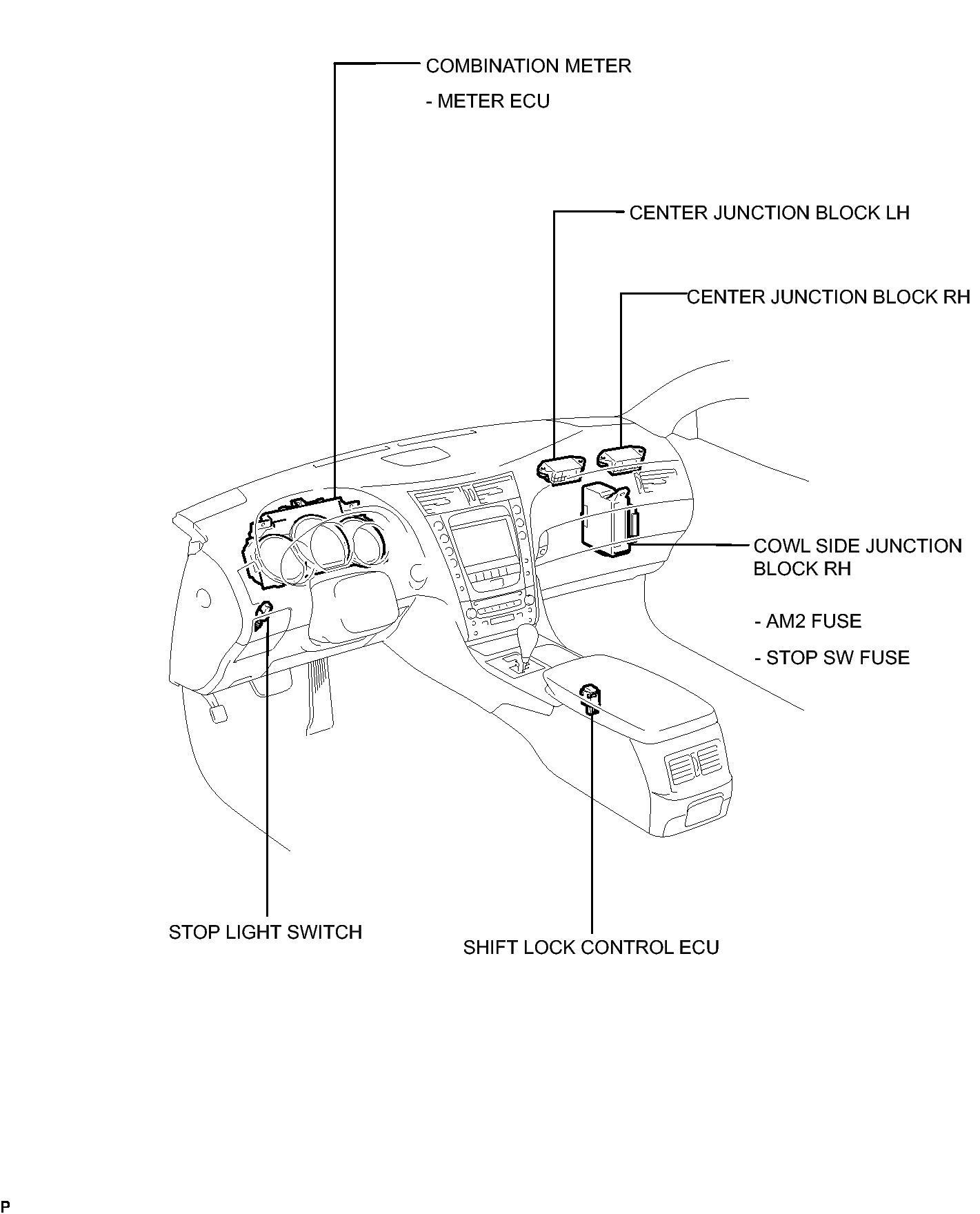

Fig 1: Identifying Smart Access System With Push-Button Start Parts Location (2 Of 3)
GTY104760Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

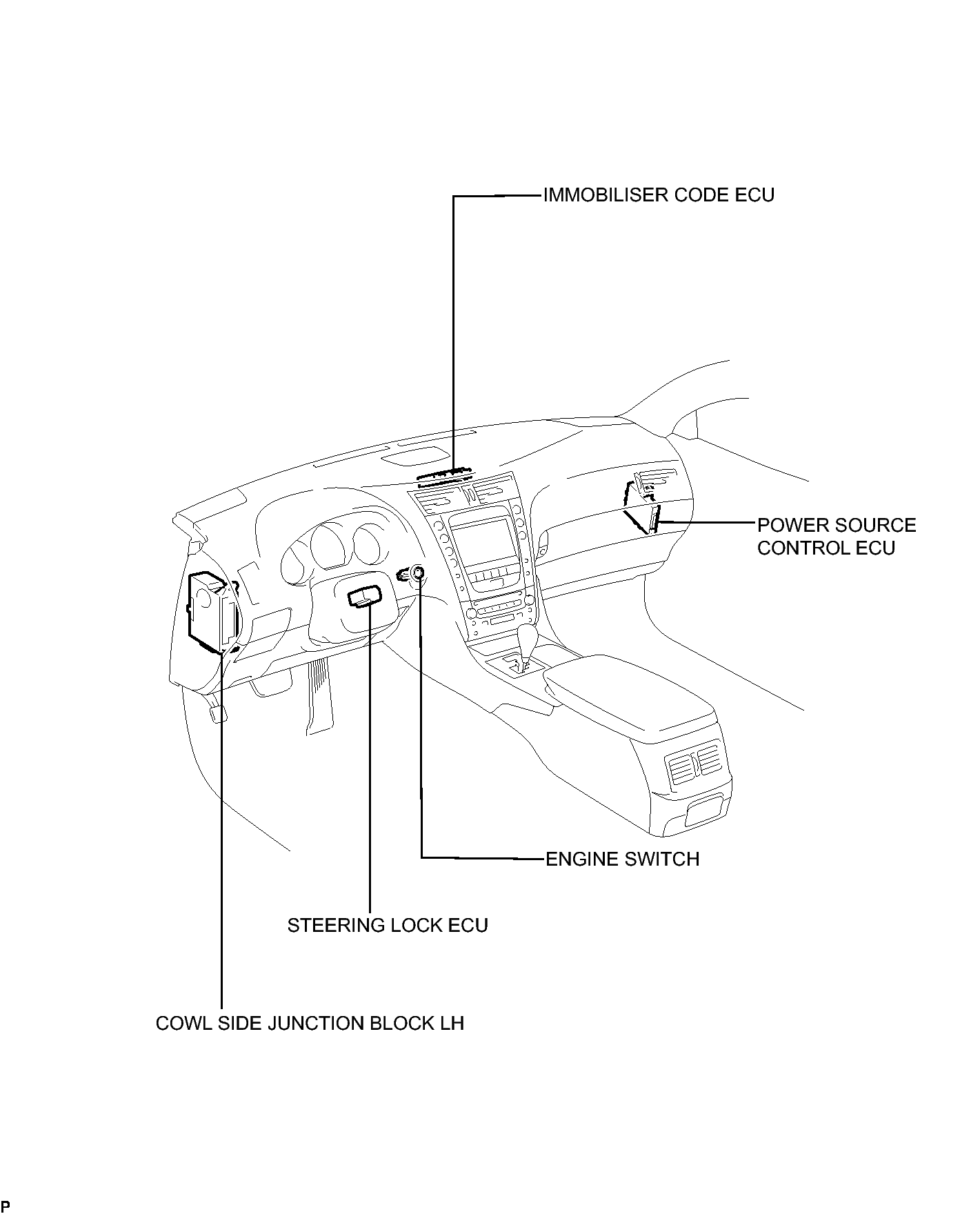

Fig 1: Identifying Smart Access System With Push-Button Start Parts Location (3 Of 3)
GTY104761Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
