Parts Location: Illustration

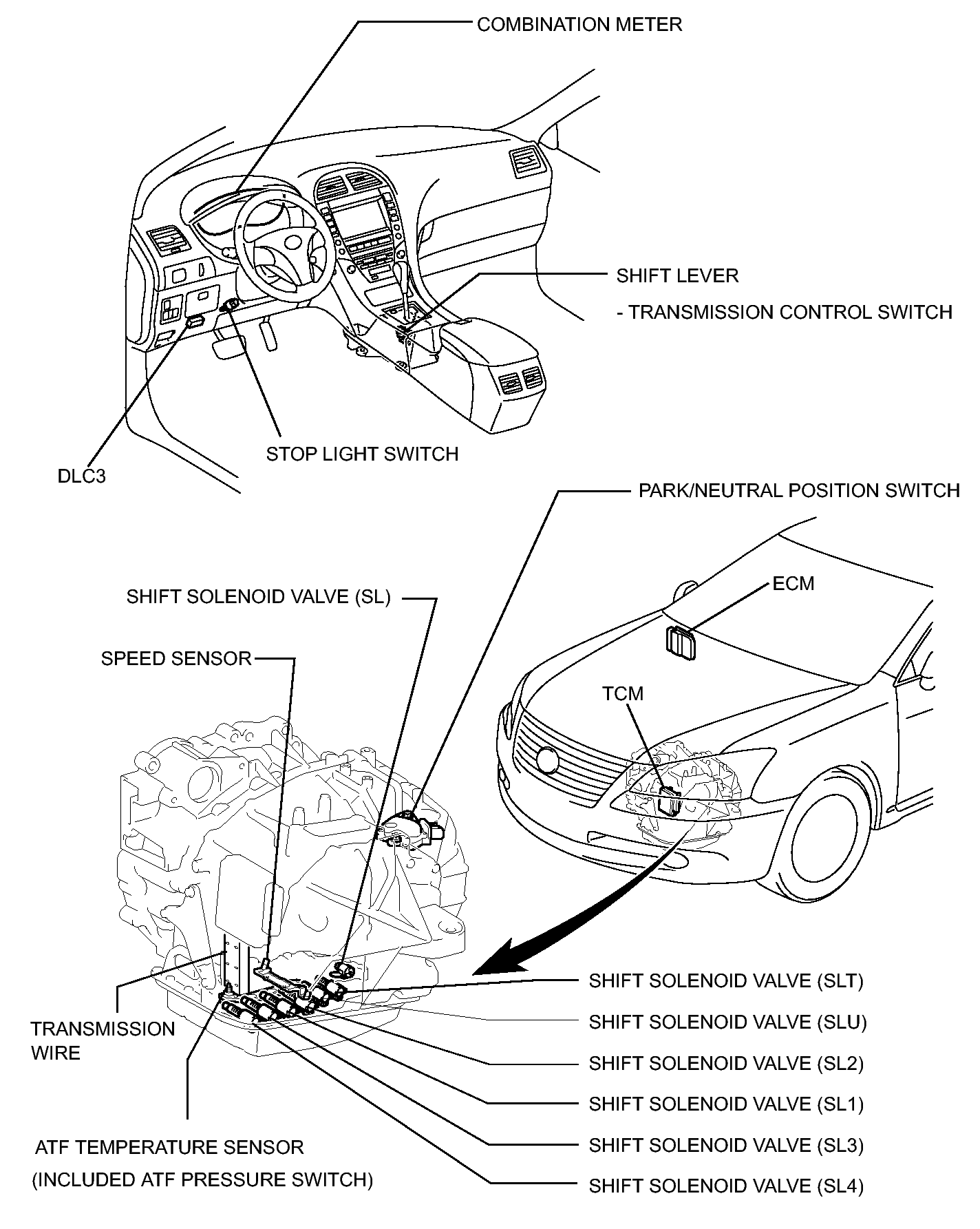

Fig 1: Identifying Automatic Transaxle System Components Location

GTY113004

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
