ECU Power Source Circuit: Wiring Diagram

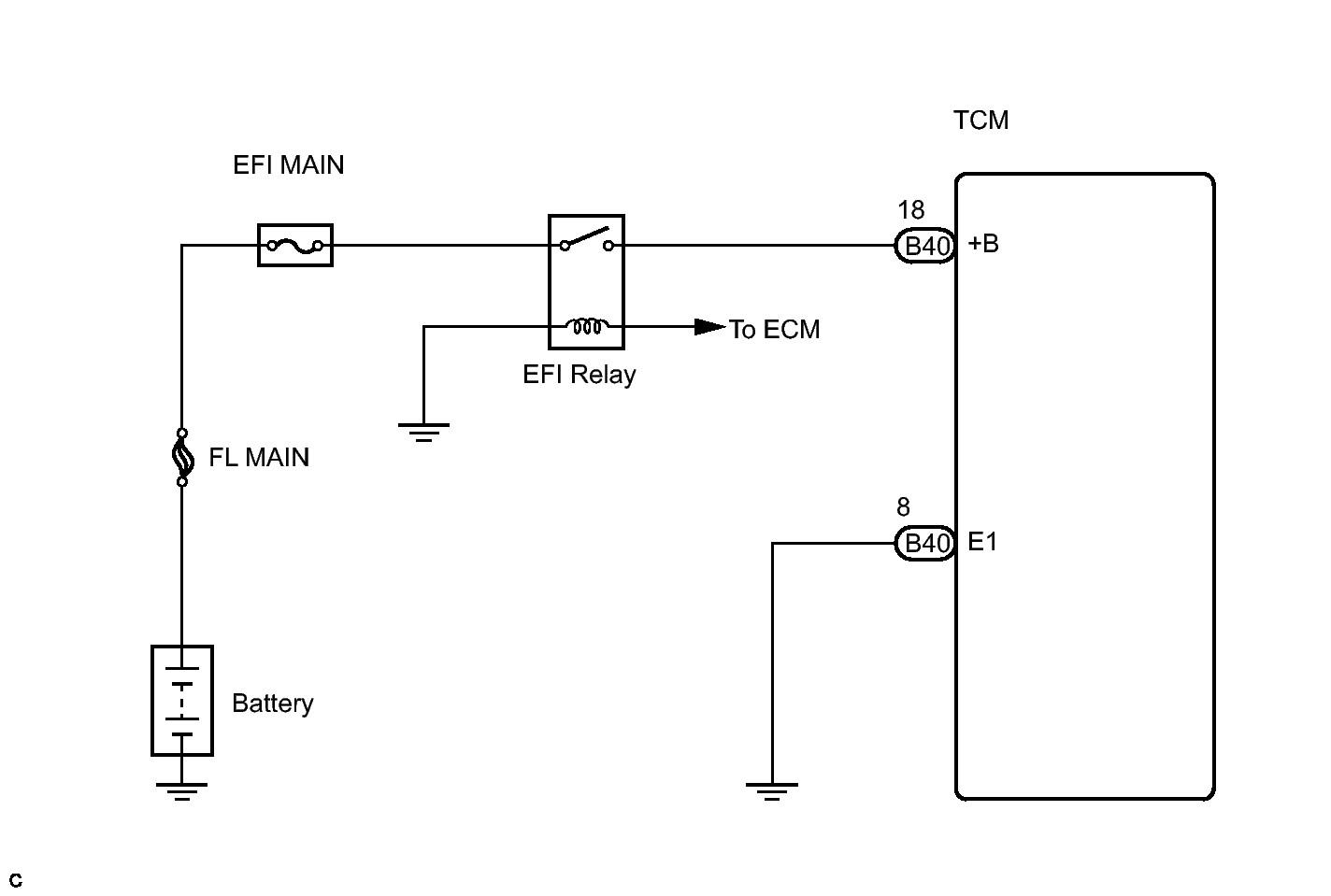

Fig 1: ECU Power Source - Wiring Diagram

GTY112188

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
