Air Intake Control Circuit: Wiring Diagram

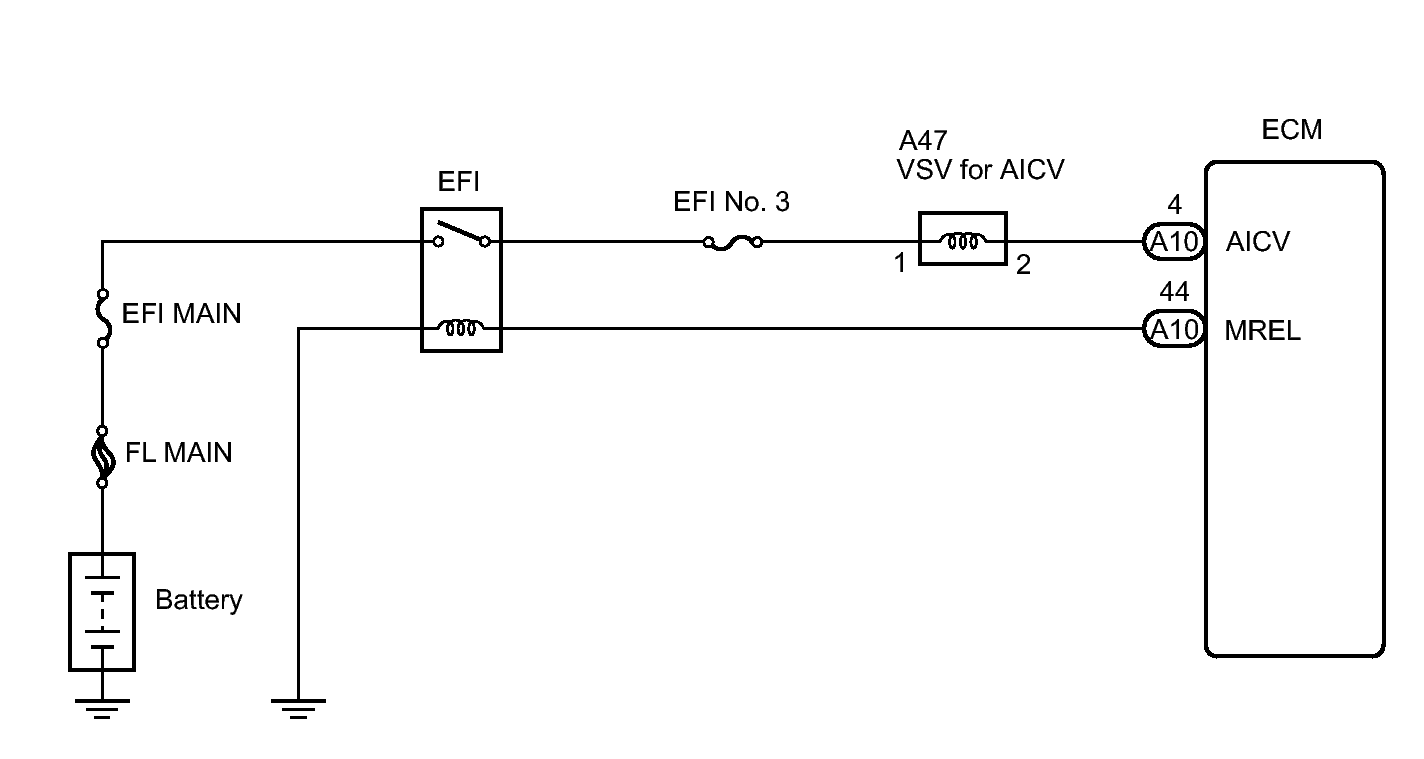

Fig 1: Air Intake Control -- Wiring Diagram

GTY132114

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
