Climate Control Seat System does not Operate: Wiring Diagram

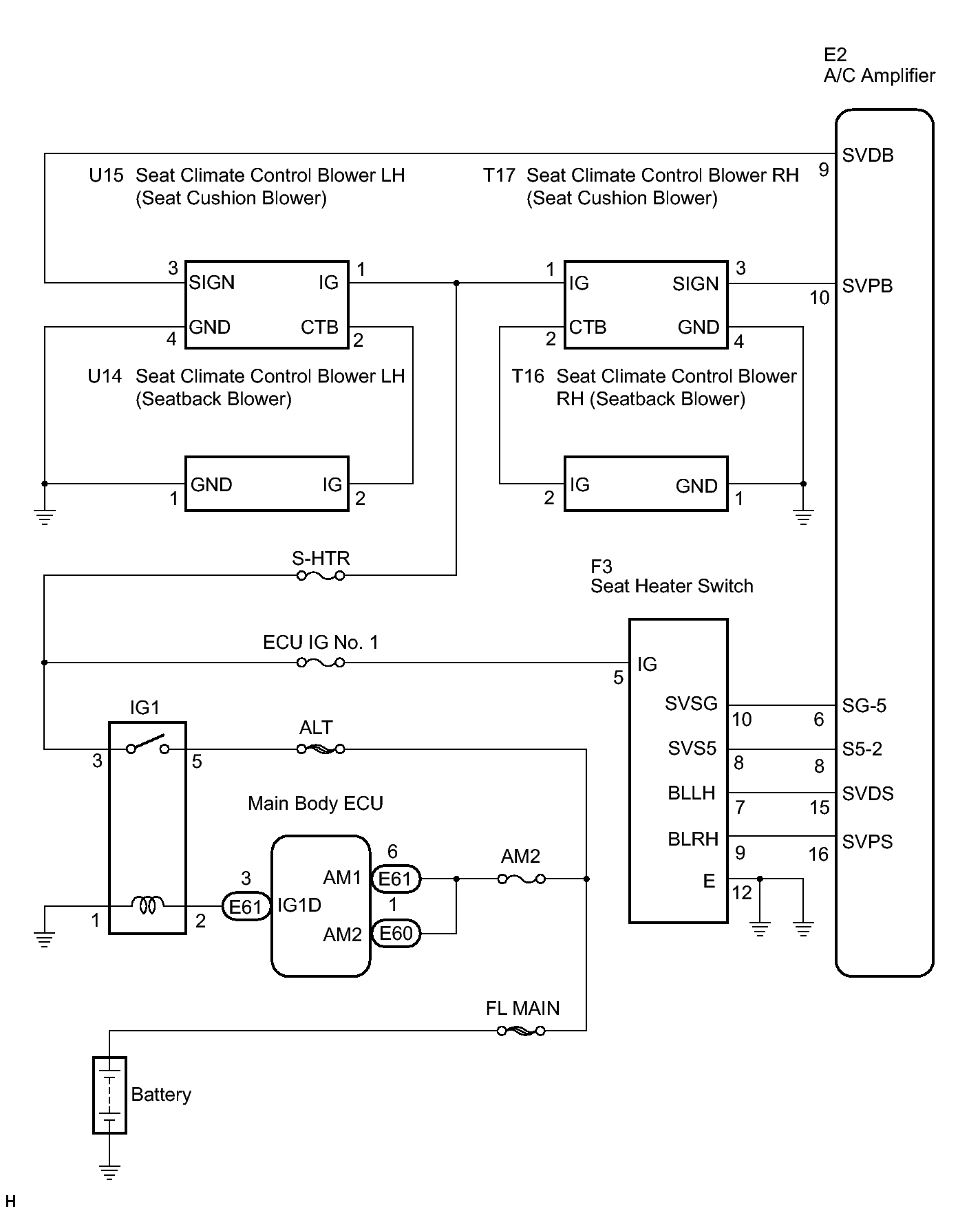

Fig 1: Climate Control Seat System - Wiring Diagram

GTY117601

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
