Water Pump With Motor: Components

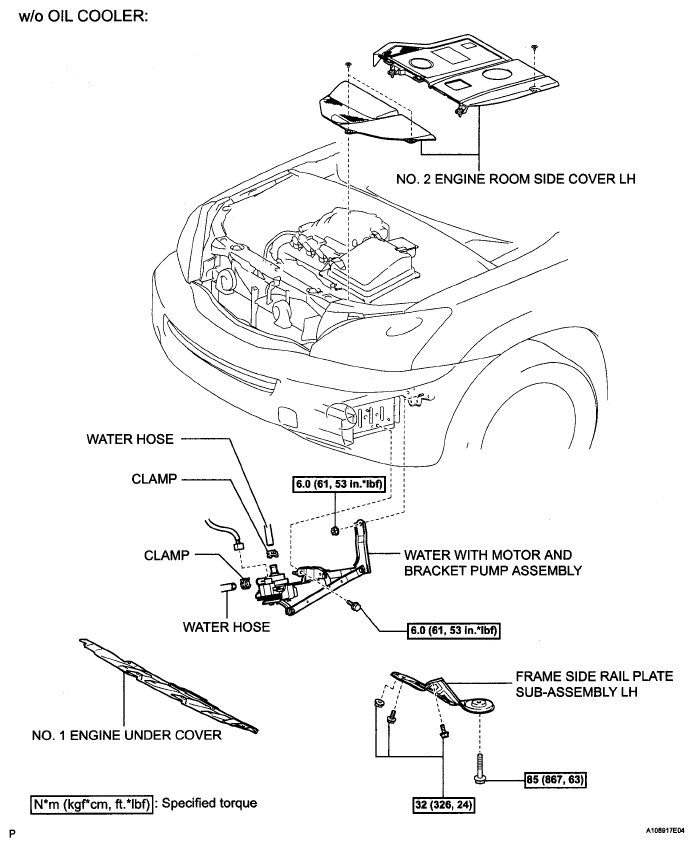

Fig 1: Water Pump With Motor Replacement Components With Torque Specifications (1 Of 2)
G05861120Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

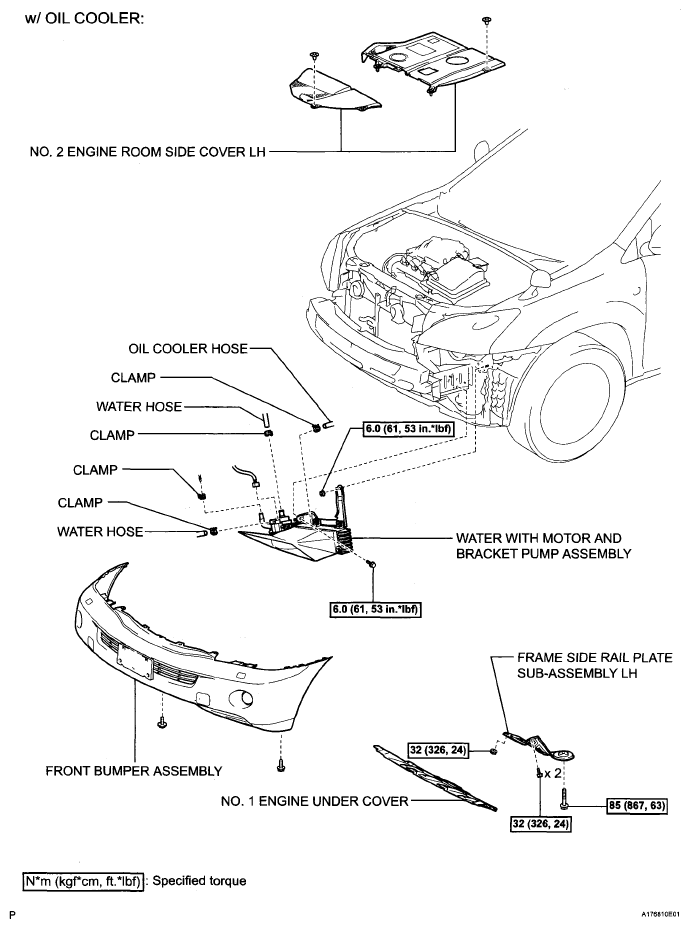

Fig 2: Water Pump With Motor Replacement Components With Torque Specifications (2 Of 2)
G05861121Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
