Parts Location

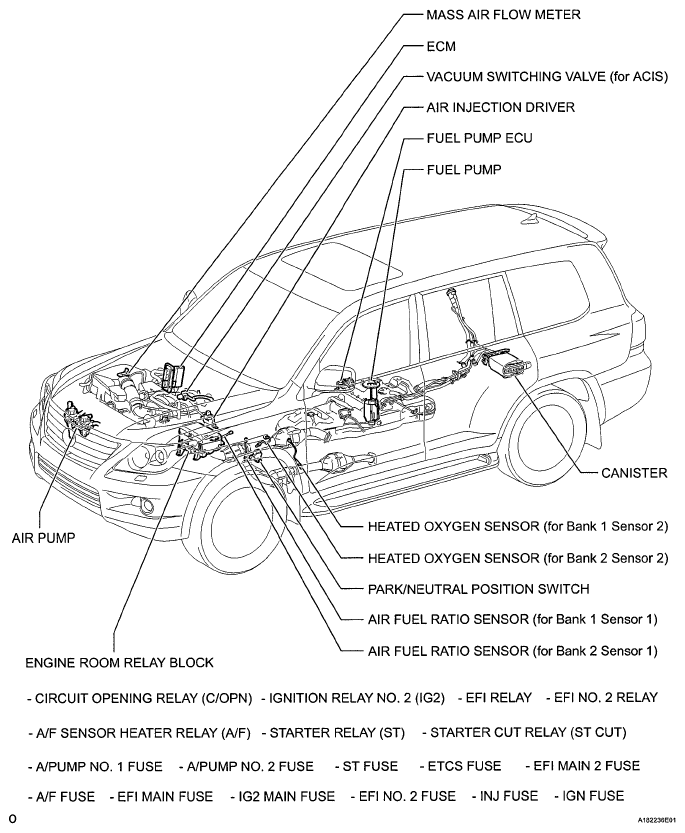

Fig 1: Identifying SFI System Components Location (1 Of 5)
G05757432Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 2: Identifying SFI System Components Location (2 Of 5)
G05627799Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

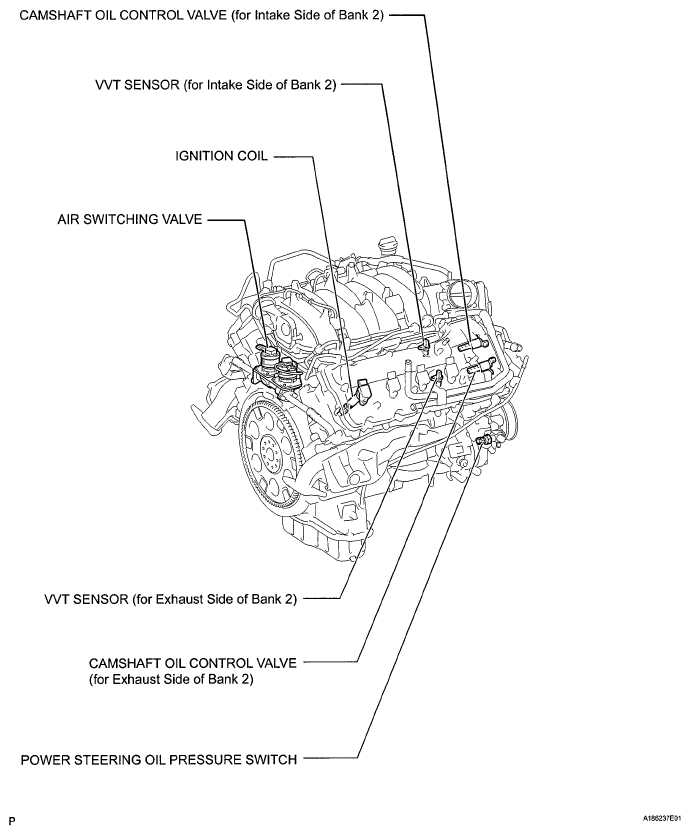

Fig 3: Identifying SFI System Components Location (3 Of 5)
G05757434Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 4: Identifying SFI System Components Location (4 Of 5)
G05627801Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

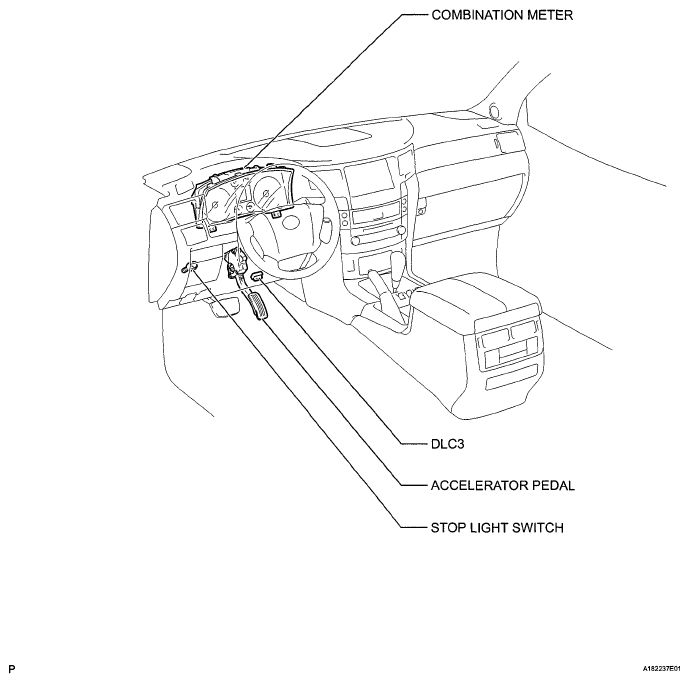

Fig 5: Identifying SFI System Components Location (5 Of 5)
G05757436Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
