Exhaust Pipe: Components

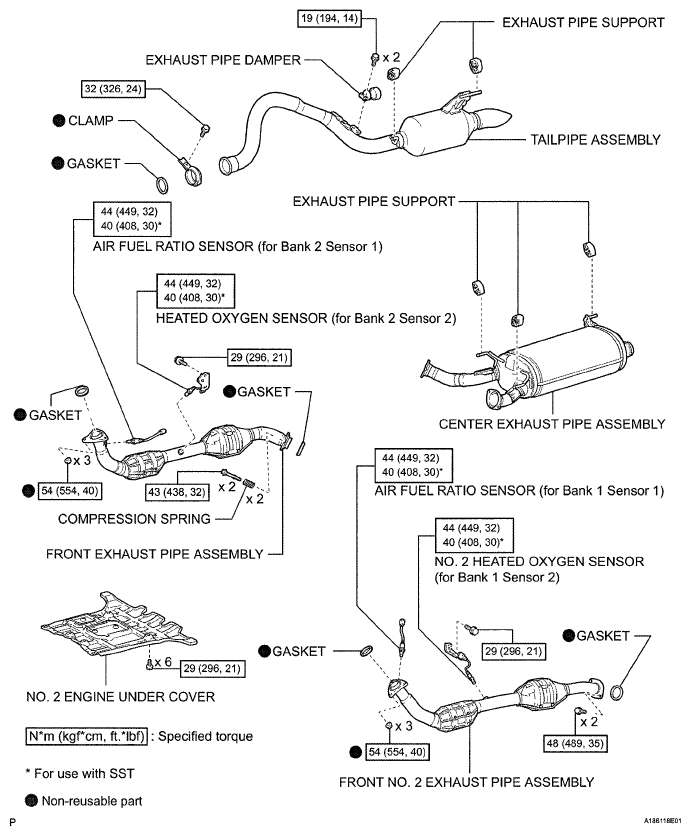

Fig 1: Exhaust Pipe Replacement Components With Torque Specifications

G05759839

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
