Sound Signal Circuit between Radio Receiver and Multi-display Controller: Wiring Diagram

Fig 1: Sound Signal Circuit Between Radio Receiver And Multi-Display Controller - Wiring Diagram (w/o SDARS System)
G05762896Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

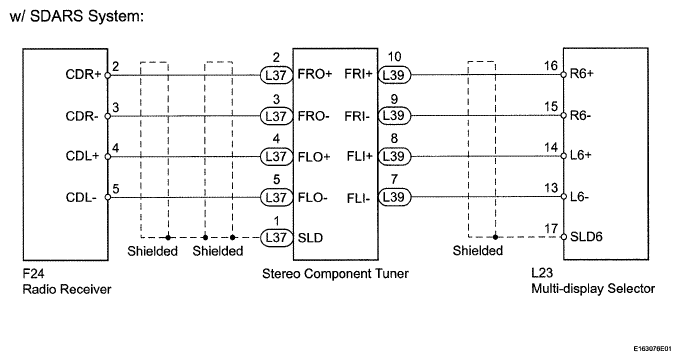

Fig 2: Sound Signal Circuit Between Radio Receiver And Multi-Display Controller - Wiring Diagram (w/ SDARS System)
G05762897Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
