Parts Location

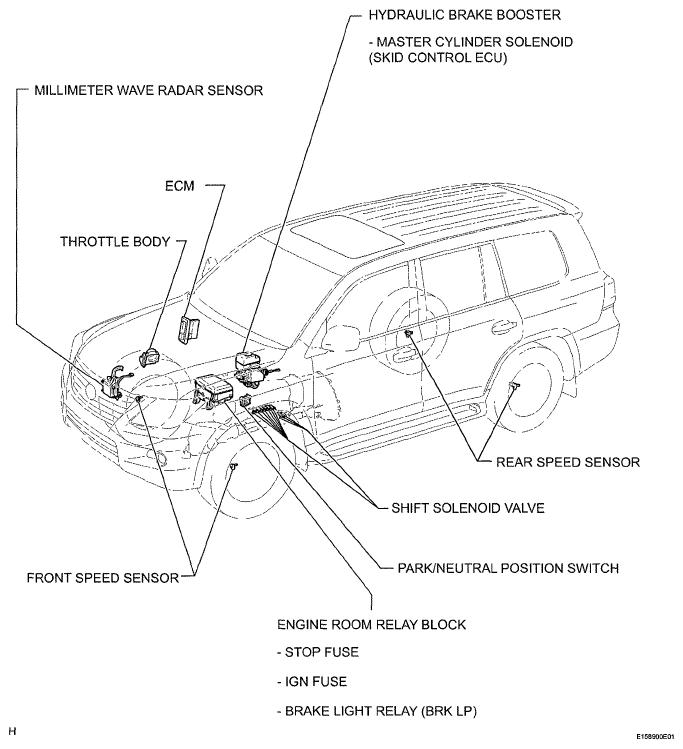

Fig 1: Identifying Dynamic Radar Cruise Control System Parts Location (1 Of 2)
G05760360Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

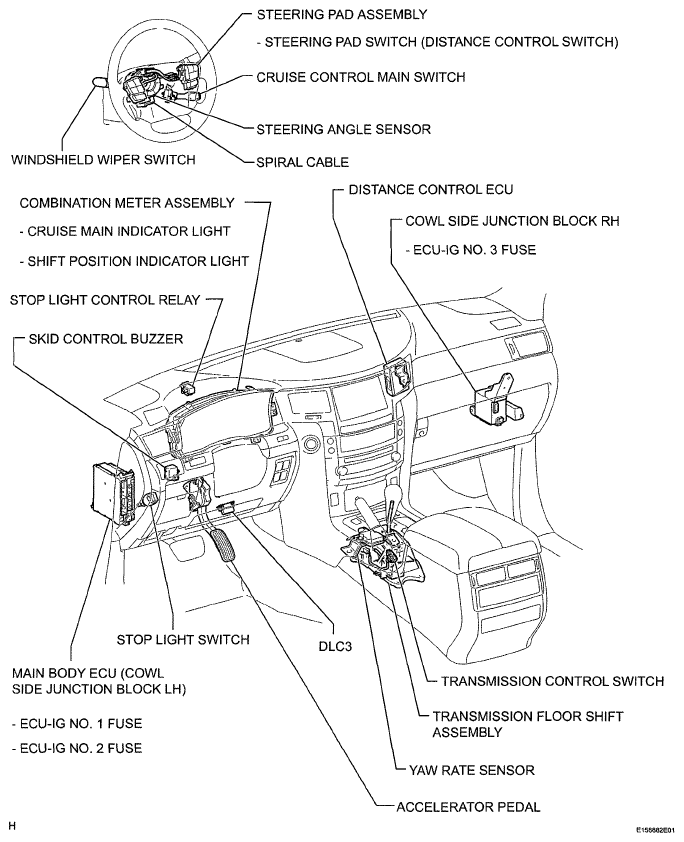

Fig 2: Identifying Dynamic Radar Cruise Control System Parts Location (2 Of 2)
G05760361Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
