DTC P0A1F-123 Battery Energy Control Module: Wiring Diagram

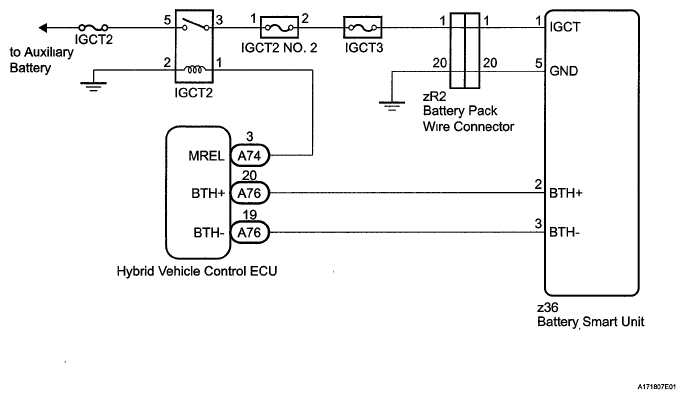

Fig 1: Hybrid Vehicle Control ECU And Battery Smart Unit - Wiring Diagram
G05780736Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
