DTC P0230: Fuel Pump Primary Circuit: Wiring Diagram

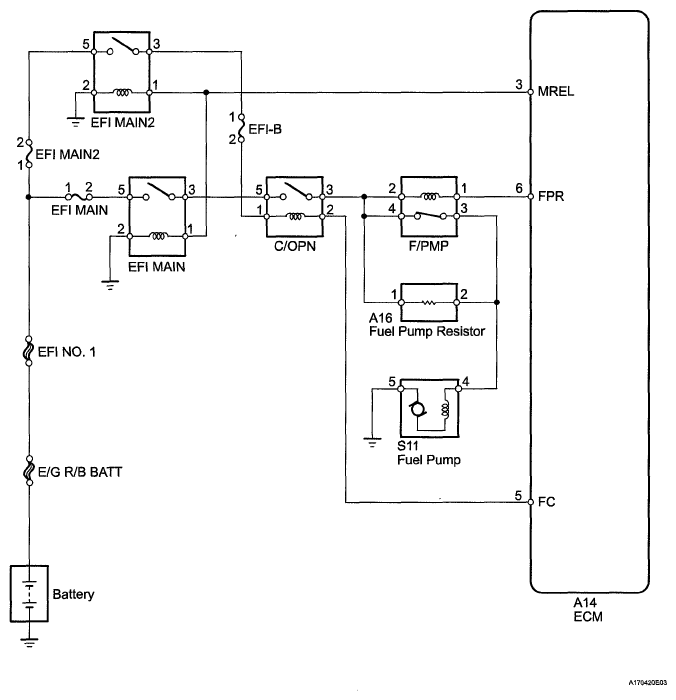

Fig 1: Fuel Pump Wiring Diagram
G05770961Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

This troubleshooting procedure is based on the premise that the engine is started. If the engine is not started, proceed to the PROBLEM SYMPTOMS TABLE .
