DTC P0088: Fuel Rail / System Pressure - Too High: Wiring Diagram

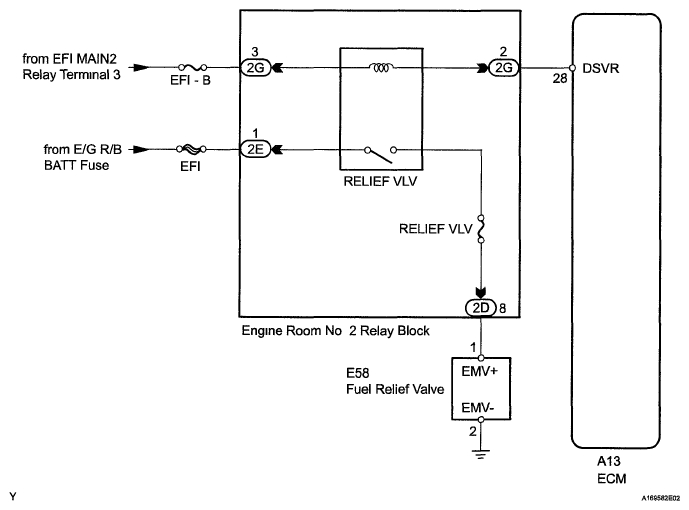

Fig 1: Direct Fuel Injection System Wiring Diagram

G05770877

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
