DTC P0705 Transmission Range Sensor Circuit Malfunction (PRNDL Input): Wiring Diagram

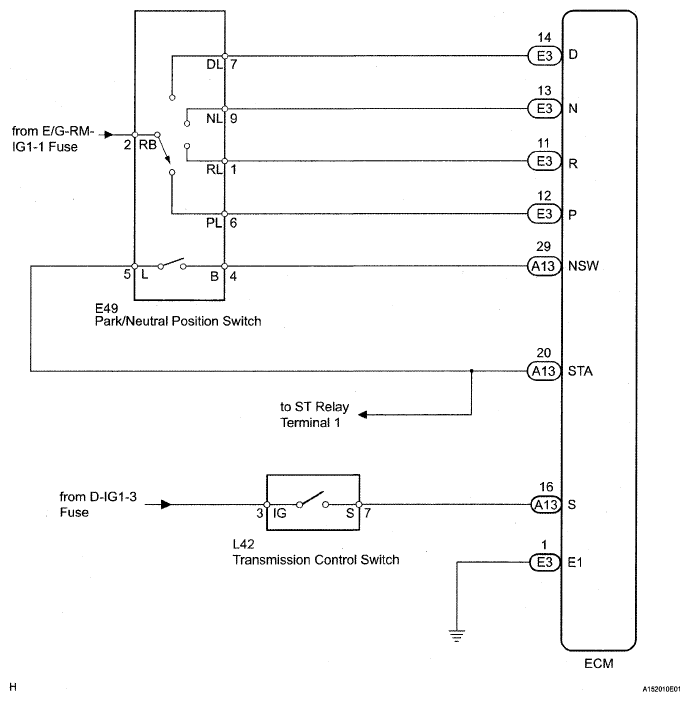

Fig 1: Transmission Range Sensor - Wiring Diagram

G04942844

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
