Inspection Procedure

1. Check that each function of the power seat operates normally by using the front power seat switches.

   OK: Each function of power seat operates normally by using seat switches.

NG: GO TO PROBLEM SYMPTOMS TABLE

OK: Go to Next Step

1. Check the Data List for proper functioning of the rear power seat switch.

   Rear Console Switch

   REAR CONSOLE SWITCH DATA LIST



   Tester Display	Measurement Item/Range	Normal Condition
   P Seat Full Front Switch	Front passenger seat full front switch signal (Forward) / ON or OFF	ON: Front passenger seat full front switch (Forward) is ON OFF: Front passenger seat full front switch (Forward) is OFF
   P Seat Return Switch	Front passenger seat full front switch signal (Return) / ON or OFF	ON: Front passenger seat full front switch (Return) is ON OFF: Front passenger seat full front switch (Return) is OFF

   OK: On screen, each item changes between ON and OFF according to above chart.

NG: REPLACE REAR POWER SEAT MODULE SWITCH

OK: Go to Next Step

1. Check the Data List for proper functioning of the power seat switch.

   Passenger Seat

   PASSENGER SEAT DATA LIST



   Tester Display	Measurement Item/Range	Normal Condition
   P Seat Slide Front From D Seat	Passenger seat shoulder slide switch signal (Forward)/ ON or OFF	ON: Passenger seat shoulder slide switch (Forward) is ON OFF: Passenger seat shoulder slide switch (Forward) is OFF
   P Seat Slide Back From D Seat	Passenger seat shoulder slide switch signal (Rearward)/ ON or OFF	ON: Passenger seat shoulder slide switch (Rearward) is ON OFF: Passenger seat shoulder slide switch (Rearward) is OFF
   P Seat Incline From D Seat	Passenger seat shoulder full front switch signal (Forward)/ ON or OFF	ON: Passenger seat shoulder full front switch (Forward) is ON OFF: Passenger seat shoulder full front switch (Forward) is OFF
   P Seat Recline From D Seat	Passenger seat shoulder full front switch signal (Rearward)/ ON or OFF	ON: Passenger seat shoulder full front switch (Rearward) is ON OFF: Passenger seat shoulder full front switch (Rearward) is OFF

   OK: On screen, each item changes between ON and OFF according to above chart.

NG: Go to step 4

OK: REPLACE FRONT POWER SEAT SWITCH RH  (See REMOVAL  )

1. Remove the switch.
2. Measure the resistance according to the values in the table below.
   Fig 1: Identifying e30 Power Seat Switch Connector Terminals

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Standard Resistance

   RESISTANCE SPECIFIED CONDITION



   Tester Connection	Switch Condition	Specified Condition
   e30-4 (HRFS) - e30-3 (E)	Full front switch (forward) is ON	Below 1 Ω
   e30-5 (HRRS) - e30-3 (E)	Full front switch (rearward) is ON	Below 1 Ω
   e30-2 (SLDF) - e30-3 (E)	Slide switch (forward) is ON	Below 1 Ω
   e30-1 (SLDR) - e30-3 (E)	Slide switch (rearward) is ON	Below 1 Ω

NG: REPLACE POWER SEAT SWITCH ASSEMBLY  (See REMOVAL  )

OK: Go to Next Step

1. Disconnect the e20 and e30 switch connectors.
2. Measure the resistance according to the values in the table below.

   Standard Resistance

   RESISTANCE SPECIFIED CONDITION



   Tester Connection	Condition	Specified Condition
   e20-16 (SLDR) - e30-1 (SLDR)	Always	Below 1 Ω
   e20-17 (SLDF) - e30-2 (SLDF)	Always	Below 1 Ω
   e20-15 (HRFS) - e30-4 (HRFS)	Always	Below 1 Ω
   e20-14 (HRRS) - e30-5 (HRRS)	Always	Below 1 Ω
   e20-16 (SLDR) - Body ground	Always	10 kΩ or higher
   e20-17 (SLDF) - Body ground	Always	10 kΩ or higher
   e20-15 (HRFS) - Body ground	Always	10 kΩ or higher
   e20-14 (HRRS) - Body ground	Always	10 kΩ or higher

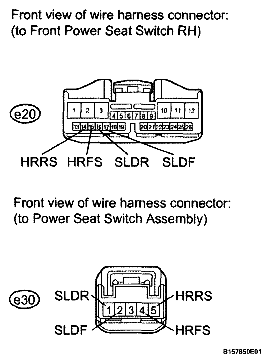

   Fig 2: Identifying e20 And e30 Power Seat Switch Connector Terminals

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

NG: REPAIR OR REPLACE HARNESS OR CONNECTOR

OK: REPLACE FRONT POWER SEAT SWITCH RH  (See REMOVAL  )
