Climate Control System does not Operate on Rear Right Side: Wiring Diagram

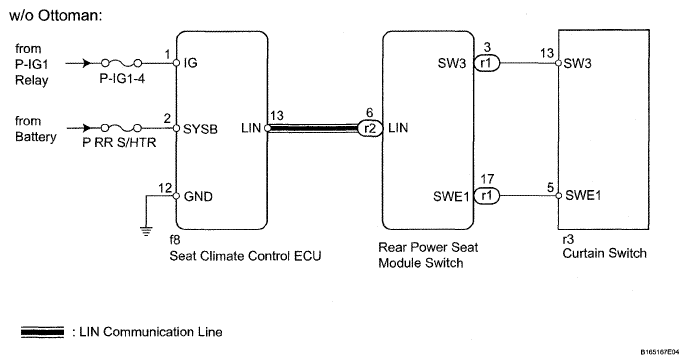

Fig 1: Climate Control System - Wiring Diagram (W/O Ottoman)
G04952678Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 2: Climate Control System - Wiring Diagram (W/ Ottoman)
G04952679Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
