Power Retractable Mirrors do not Operate with Power Retract Mirror Switch: Wiring Diagram

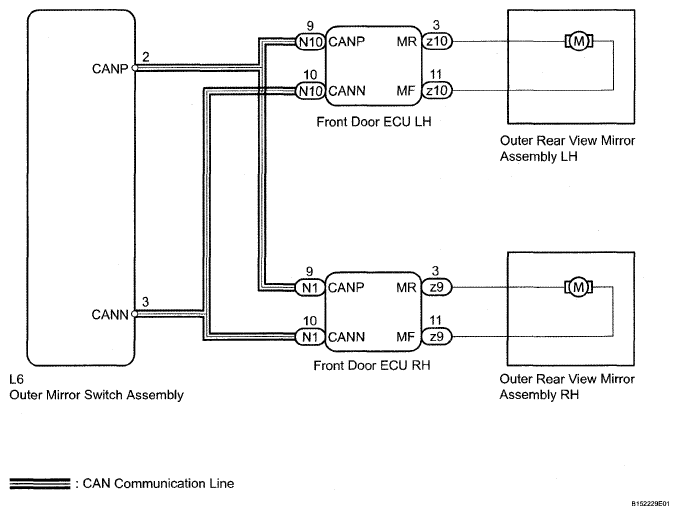

Fig 1: Power Retractable Mirrors Do Not Operate With Power Retract Mirror Switch - Wiring Diagram
G04952278Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
