Seat Heater without Climate Control Seat: Notes

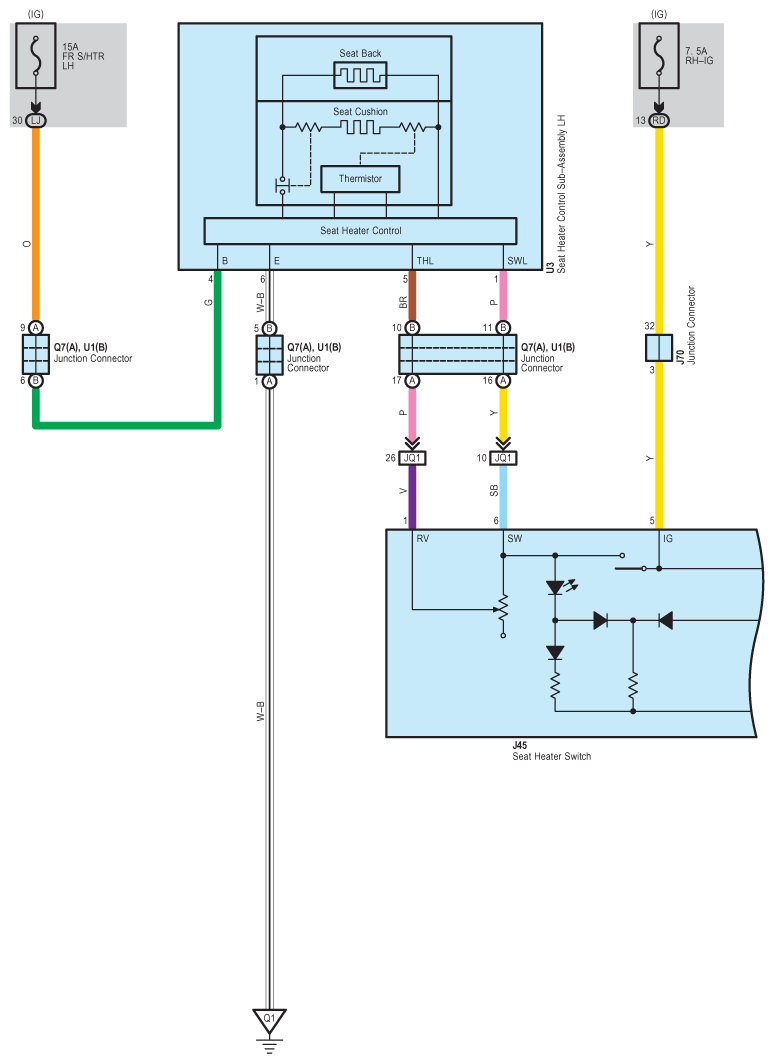

Fig 1: Seat Heater Without Climate Control Seat - Circuit Diagram (1 Of 2)
G07592421Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

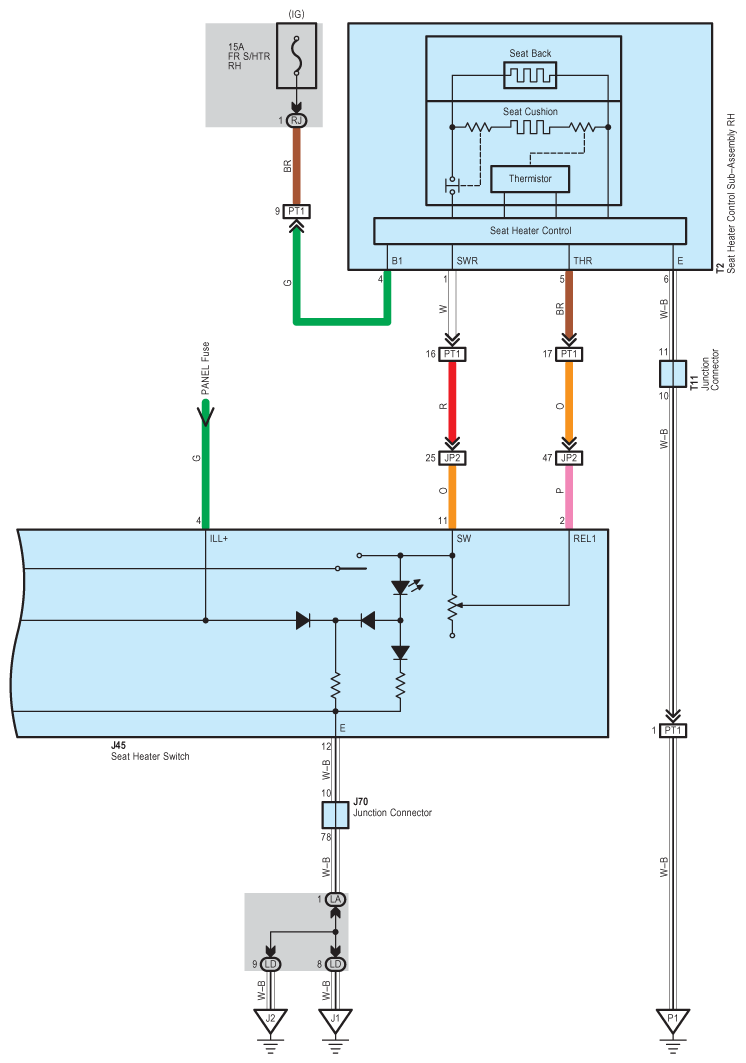

Fig 2: Seat Heater Without Climate Control Seat - Circuit Diagram (2 Of 2)
G07592422Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
