Power Seat for Front Passenger's Seat: Notes

Fig 1: Power Seat For Front Passengers Seat - Circuit Diagram (1 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

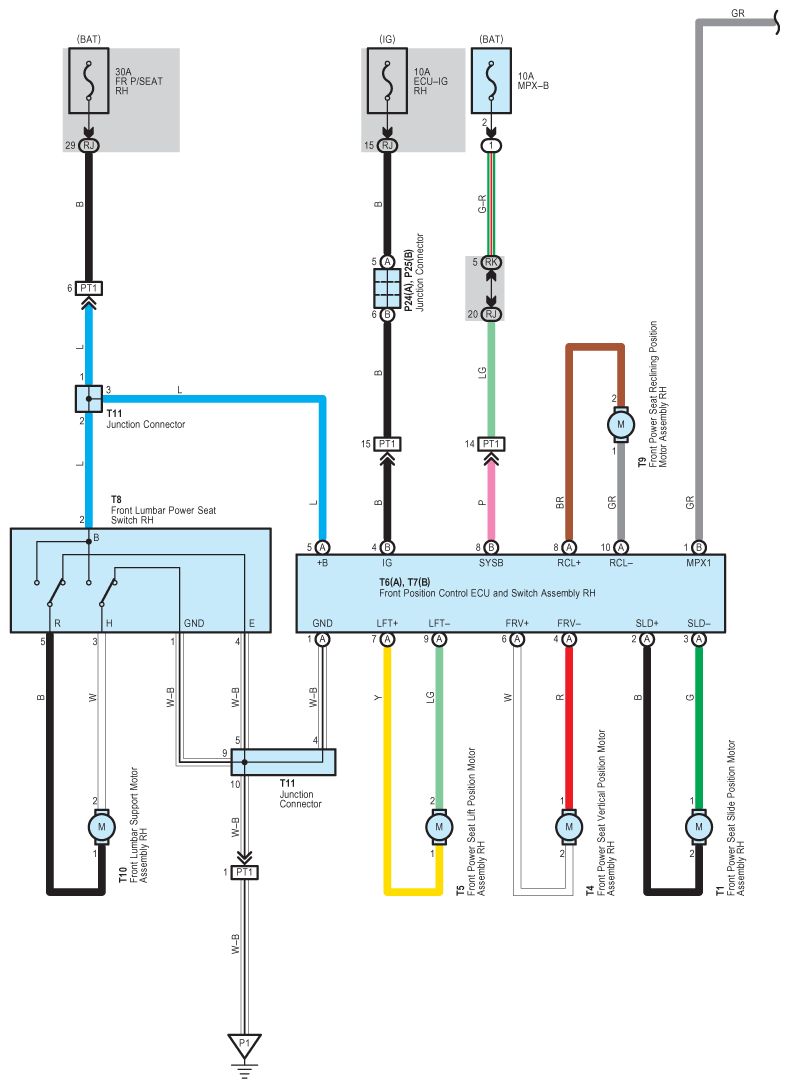

Fig 2: Power Seat For Front Passengers Seat - Circuit Diagram (2 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 3: Power Seat For Front Passengers Seat - Circuit Diagram (3 Of 4)

Fig 4: Power Seat For Front Passengers Seat - Circuit Diagram (4 Of 4)
