Front Passenger Side ECU Power Source Circuit: Wiring Diagram

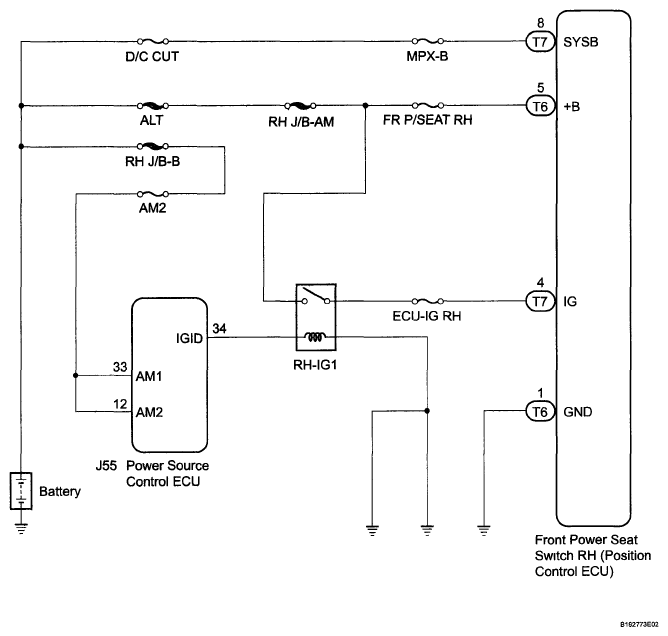

Fig 1: Front Passenger Side ECU Power Source Wiring Diagram

G05754863

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
