All Door Entry Lock/Unlock Functions and Wireless Functions do not Operate: Wiring Diagram

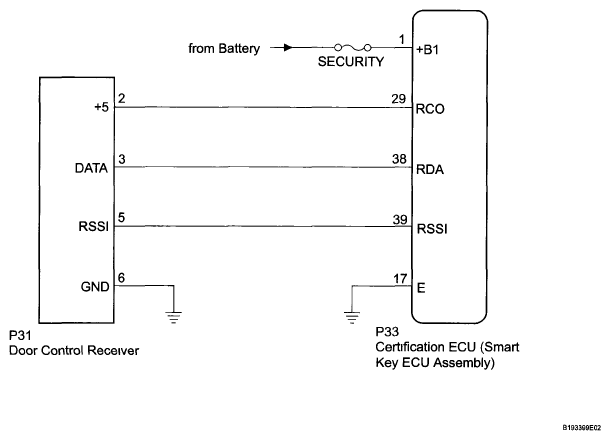

Fig 1: Door Control Receiver And Certification ECU - Wiring Diagram
G05754338Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
