DTC U0235 Lost Communication with Cruise Control Front Distance Range Sensor: Wiring Diagram

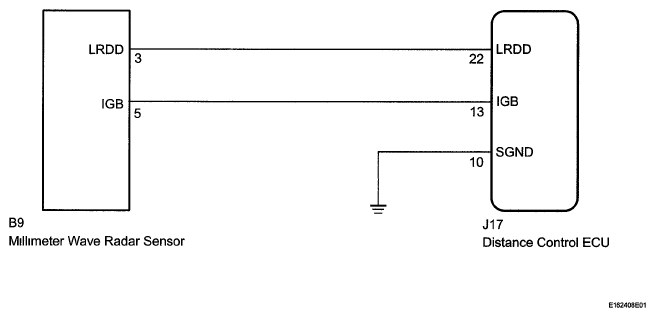

Fig 1: Cruise Control Front Distance Range Sensor - Wiring Diagram
G05750617Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
