DTC P0571 Stop Light Switch Circuit Malfunction: Wiring Diagram

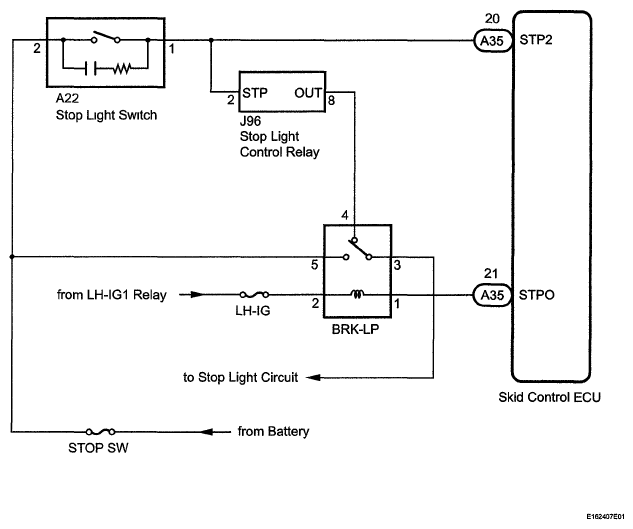

Fig 1: Stop Light Switch - Wiring Diagram
G05750612Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
