System Diagram

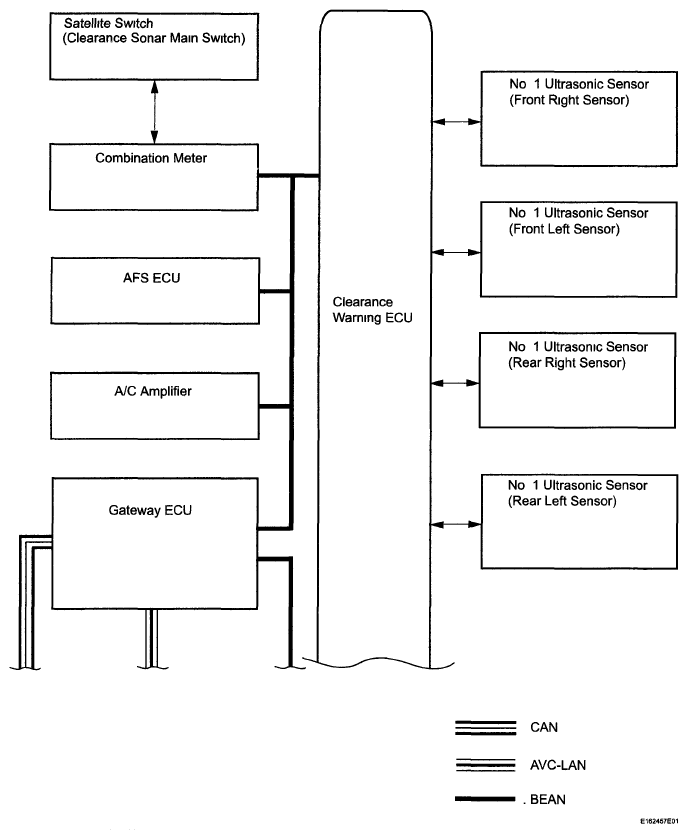

Fig 1: Intuitive Parking Assist System Diagram (1 Of 2)
G05753784Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

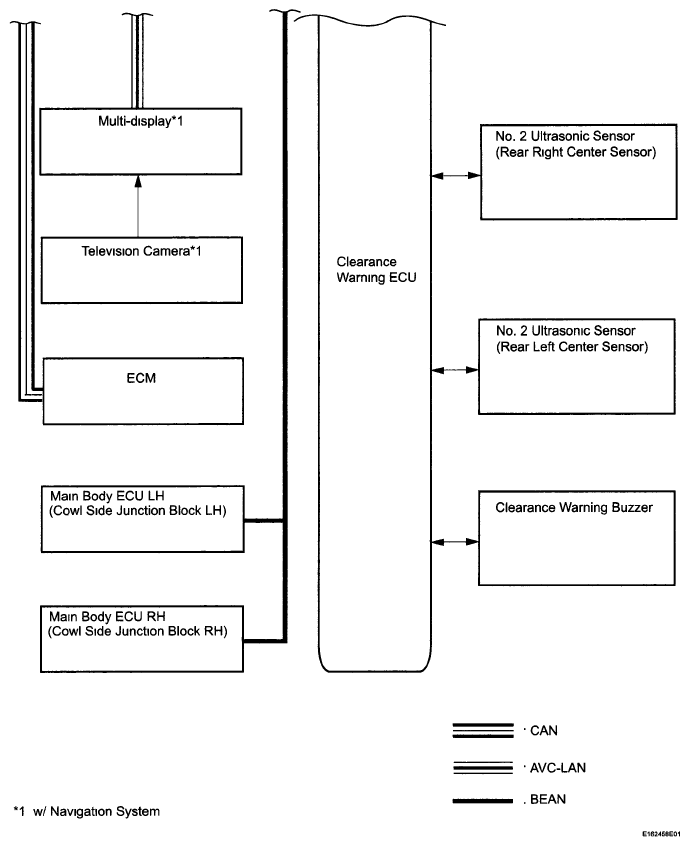

Fig 2: Intuitive Parking Assist System Diagram (2 Of 2)
G05753785Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Input Signal to Clearance Warning ECU

INPUT SIGNAL REFERENCE

Transmitting ECU (Transmitter) Signal Communication Method
Combination Meter Vehicle speed signal BEAN
Satellite Switch Clearance sonar main switch signal BEAN
ECM Shift position signal CAN - BEAN
Main body ECU LH (Cowl Side Junction Block LH) Reverse signal BEAN
Main body ECU RH (Cowl Side Junction Block RH) Parking brake switch signal BEAN
Multi-display(1) Intuitive parking assist system setting change signal AVC-LAN - BEAN
(1) w/ Navigation System

Output Signal from Clearance Warning ECU

OUTPUT SIGNAL REFERENCE

Receiving ECU Signal Communication Method
Combination Meter Display signal BEAN
Multi-display(1) Display signal AVC-LAN
(1) w/ Navigation System
