Integration Control And Panel: Reassembly

  1. INSTALL NO. 1 CONTROL KNOB SUB-ASSEMBLY
    1. Engage the 16 claws, and install the No. 1 control knob sub-assembly.

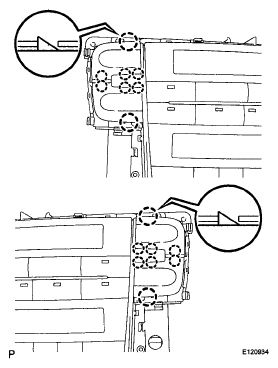

      Fig 1: Identifying Claws For No. 1 Control Knob Sub-Assembly
      G05755483Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. INSTALL INSTRUMENT CLUSTER FINISH PANEL CENTER
    1. Engage the 5 claws.
      Fig 2: Identifying Claws For Instrument Cluster Finish Panel Center
      G05754769Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Install the integration control panel with 6 screws.
    Fig 3: Locating Integration Control Panel And Screws
    G05754768Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
