Integration Control And Panel: Disassembly

  1. REMOVE CENTER INSTRUMENT CLUSTER FINISH PANEL
    1. Remove the 6 screws.
      Fig 1: Locating Center Instrument Cluster Finish Panel Screws
      G05754768Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disengage the 5 claws, and remove the center instrument cluster finish panel.
      Fig 2: Identifying Integration Control Panel Claws
      G05754769Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. REMOVE NO. 1 CONTROL KNOB SUB-ASSEMBLY
    1. Disengage the 16 claws, and remove the No. 1 control knob sub-assembly.

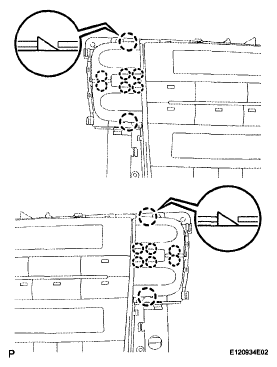

      Fig 3: Identifying Claws For No. 1 Control Knob Sub-Assembly
      G05831647Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
