COMPRESSOR AND MAGNETIC CLUTCH (for 2WD): Components

Fig 1: Exploded View Of Compressor And Magnetic Clutch Replacement Components (2WD) (1 Of 2) With Torque Specifications
G05831564Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

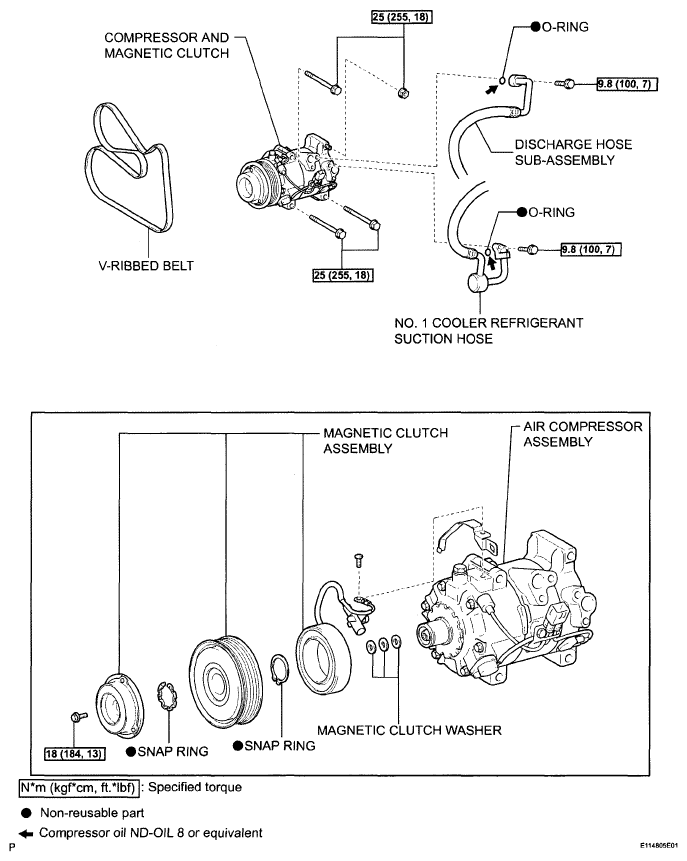

Fig 2: Exploded View Of Compressor And Magnetic Clutch (2WD) (2 Of 2) With Torque Specifications
G05831565Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
