Blower Unit: Components

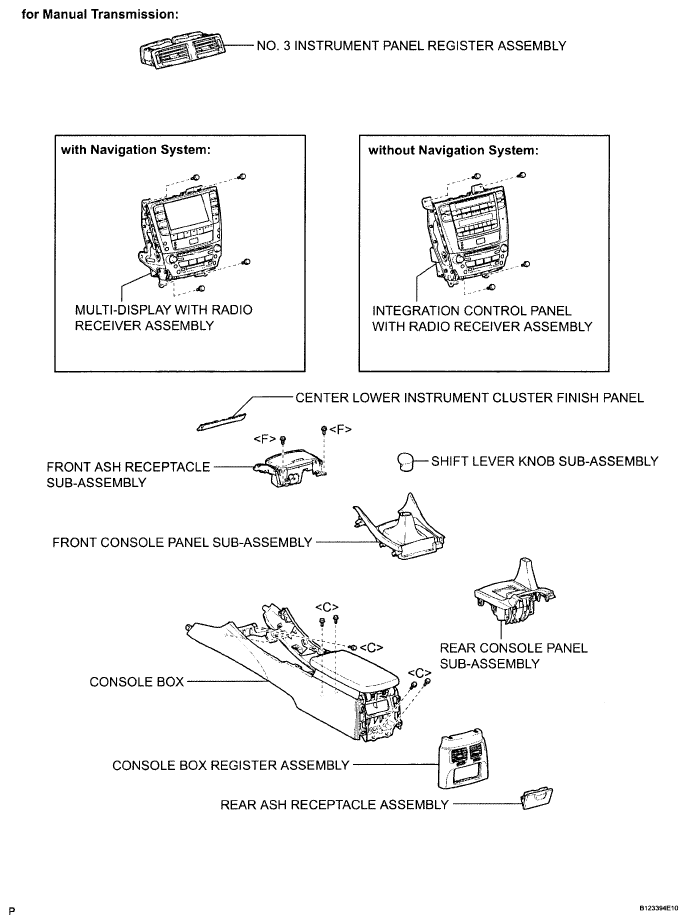

Fig 1: Exploded View Of Air Conditioning Unit Replacement Components (1 Of 9)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

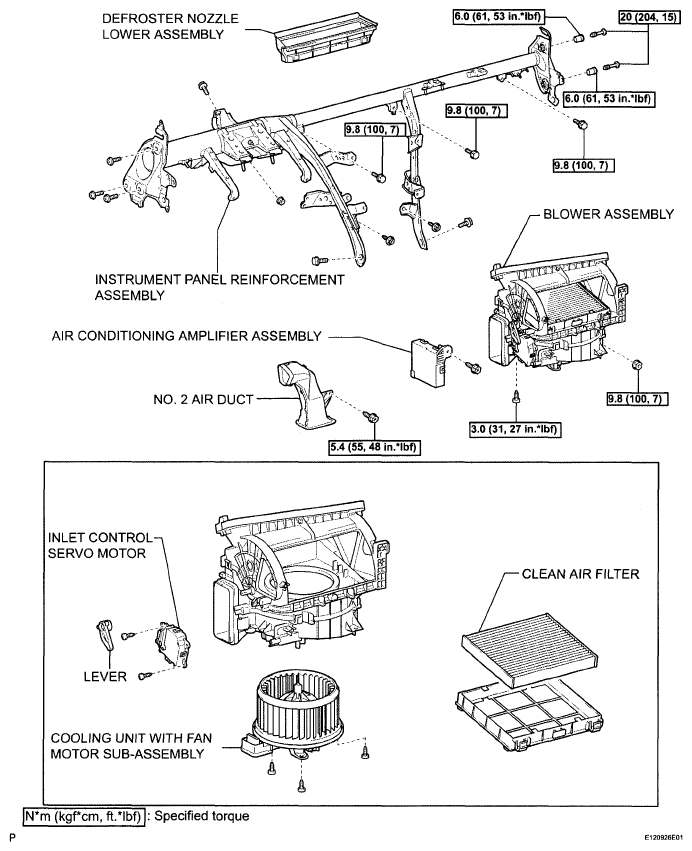

Fig 2: Exploded View Of Air Conditioning Unit Replacement Components (2 Of 9) With Torque Specifications

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

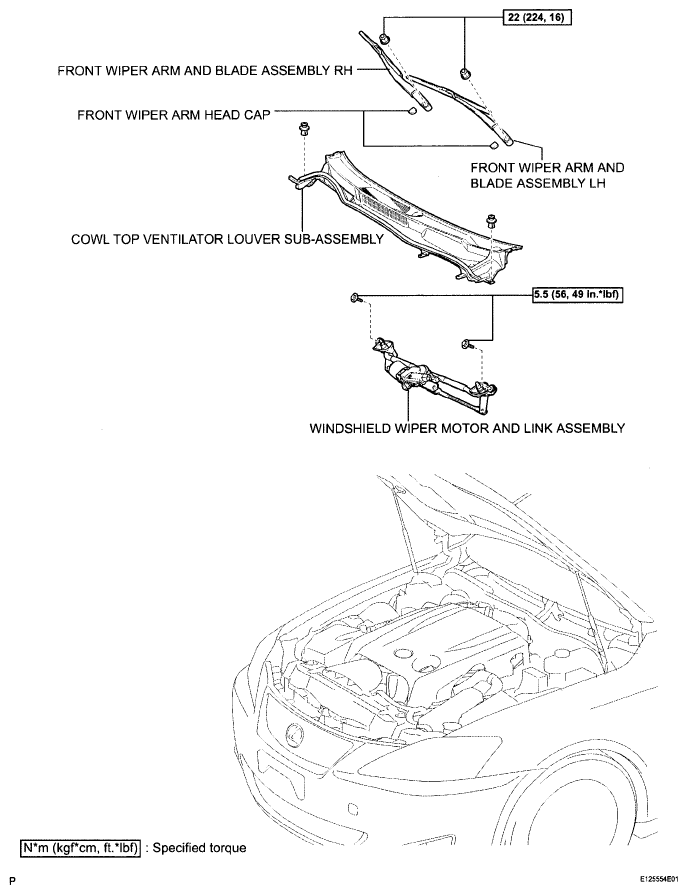

Fig 3: Exploded View Of Air Conditioning Unit Replacement Components (3 Of 9)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

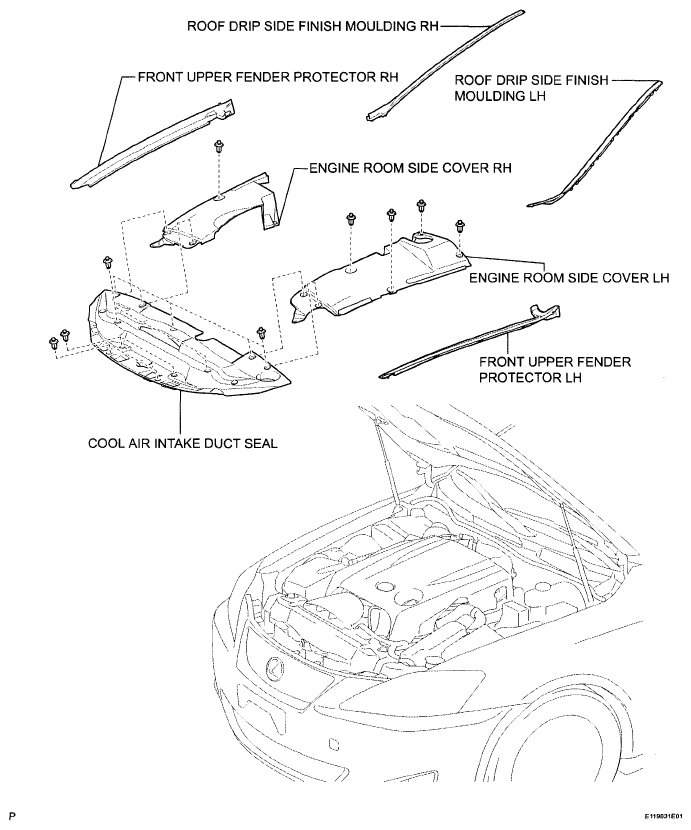

Fig 4: Exploded View Of Air Conditioning Unit Replacement Components (4 Of 9)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

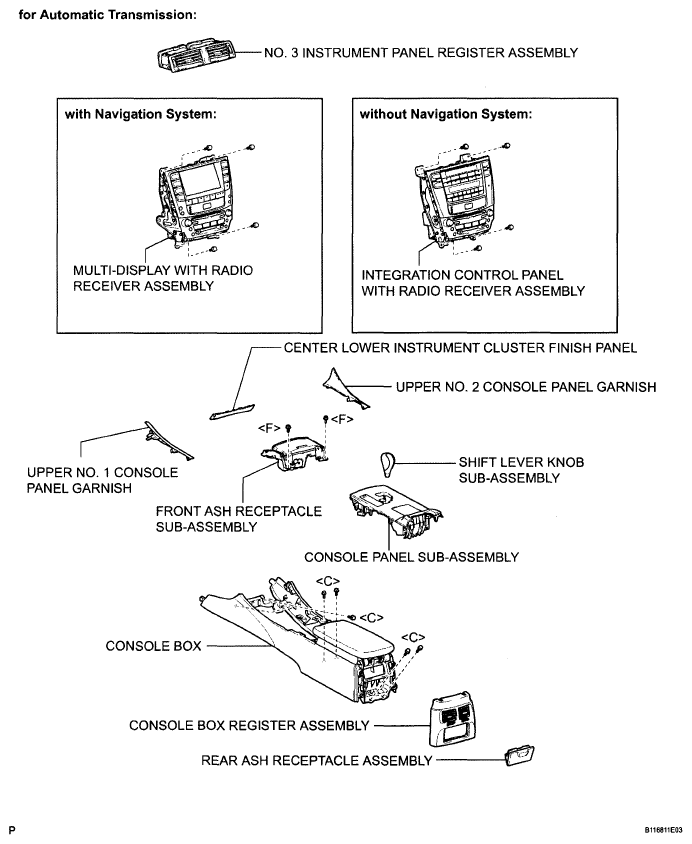

Fig 5: Exploded View Of Air Conditioning Unit Replacement Components (5 Of 9) With Torque Specifications

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 6: Exploded View Of Air Conditioning Unit Replacement Components (6 Of 9) With Torque Specifications

Fig 7: Exploded View Of Air Conditioning Unit Replacement Components (7 Of 9) With Torque Specifications

Fig 8: Exploded View Of Air Conditioning Unit Replacement Components (8 Of 9) With Torque Specifications

Fig 9: Exploded View Of Air Conditioning Unit (9 Of 9) With Torque Specifications
