Inspection Procedure

  1. CHECK HARNESS AND CONNECTOR (MULTI-DISPLAY - TELEVISION CAMERA ASSEMBLY)
    1. Disconnect the J51 connector from the multi-display.
    2. Disconnect the Q43 connector from the television camera assembly.

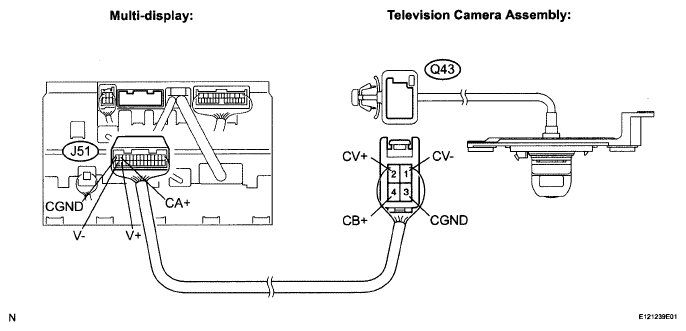

      Fig 1: Checking Harness And Connector (Multi-Display - Television Camera Assembly)
      G05832789Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Measure the resistance according to the value (s) in the table below.

      Standard resistance

      TESTER CONNECTION SPECIFIED CONDITION CHART

      Tester connection (Terminal No.) Condition Specified condition
      CB+ (Q43-4) - CA+ (J51-13) Always Below 1 Ω
      CGND (Q43-3) - CGND (J51-14) Always Below 1 Ω
      CV+ (Q43-2) - V+ (J51-27) Always Below 1 Ω
      CV- (Q43-1) - V- (J51-28) Always Below 1 Ω
      CB+ (Q43-4) - Body ground Always 10 kΩ or higher
      CGND (Q43-3) - Body ground Always 10 kΩ or higher
      CV+ (Q43-2) - Body ground Always 10 kΩ or higher
      CV- (Q43-1) - Body ground Always 10 kΩ or higher

    NG: REPAIR OR REPLACE HARNESS OR CONNECTOR

    OK: Go to next step

  2. INSPECT MULTI-DISPLAY
    1. Reconnect the multi-display J51 connector.

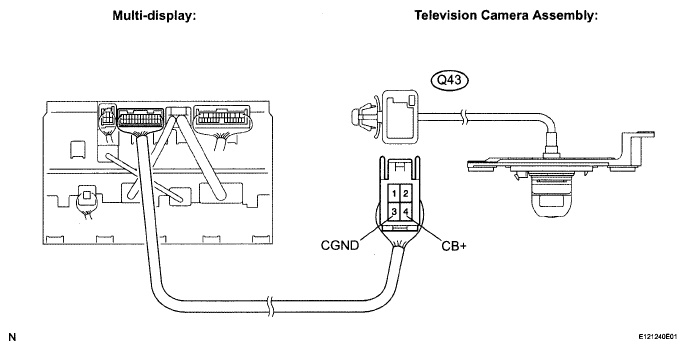

      Fig 2: Connecting Multi-Display J51 Connector
      G05832790Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Measure the voltage according to the value (s) in the table below.

      Standard voltage

      TESTER CONNECTION SPECIFIED CONDITION CHART

      Tester connection Condition Specified condition
      CB+ (Q43-4) - CGND (Q43-3) Engine switch on (IG)
      Shift lever R position      		 Approx. 6 V

    NG: REPLACE MULTI-DISPLAY

    OK: Go to next step

  3. INSPECT TELEVISION CAMERA ASSEMBLY
    1. Reconnect the multi-display J51 connector and the television camera assembly Q43 connector.

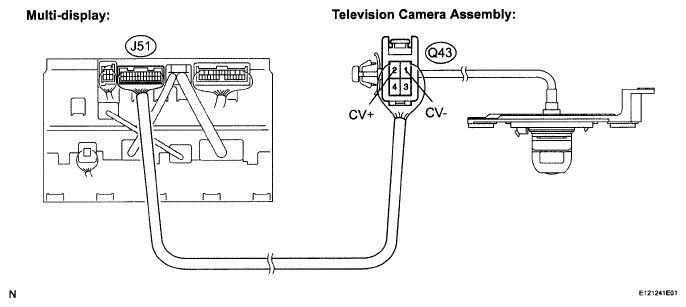

      Fig 3: Inspecting Television Camera Assembly
      G05832791Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Check the waveform of the television camera assembly using an oscilloscope.
      1. Measurement terminal: CV+ - CV-

        Measurement setting: 0.2 V/DIV, 0.2 μs/DIV

        Condition: Engine switch on (IG), Shift lever in R range

        OK: Pulses as shown in the illustration.

      Fig 4: Identifying Signal Waveform
      G04967064Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    NG: REPLACE TELEVISION CAMERA ASSEMBLY

    OK: PROCEED TO NEXT CIRCUIT INSPECTION SHOWN IN  PROBLEM SYMPTOMS TABLE
