Parts Location

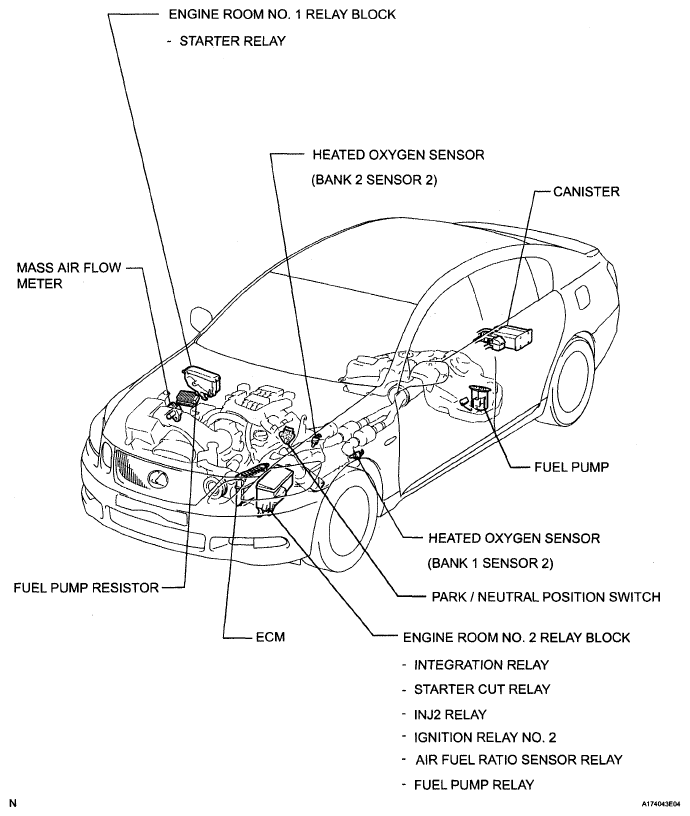

Fig 1: Identifying SFI System Parts Location (1 Of 6)
G05803612Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

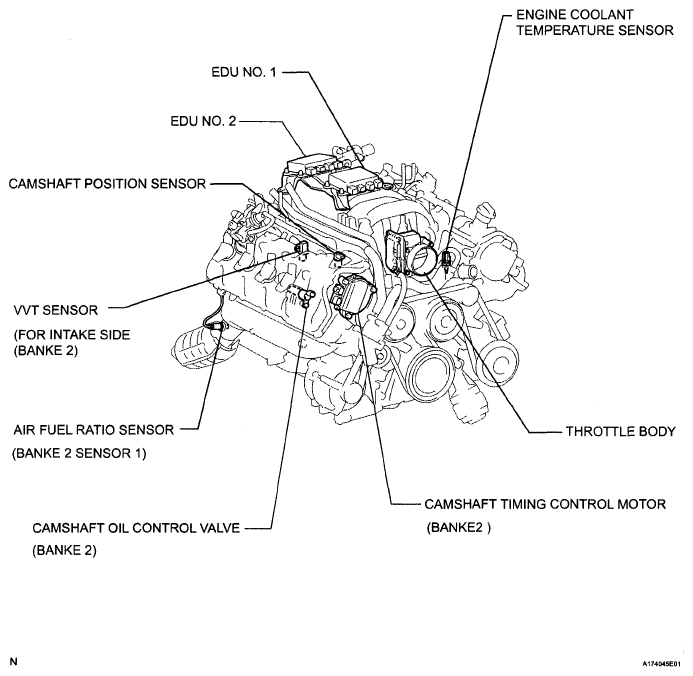

Fig 2: Identifying SFI System Parts Location (2 Of 6)
G05803613Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

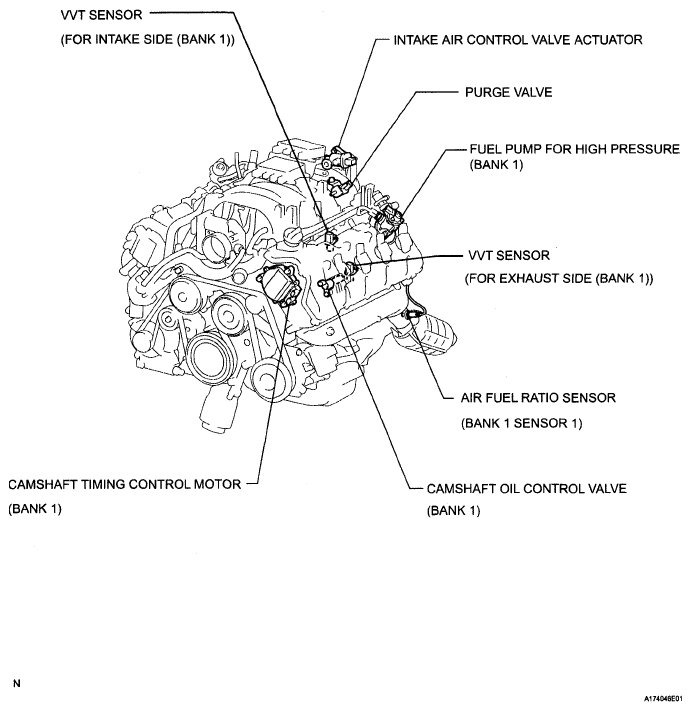

Fig 3: Identifying SFI System Parts Location (3 Of 6)
G05803614Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

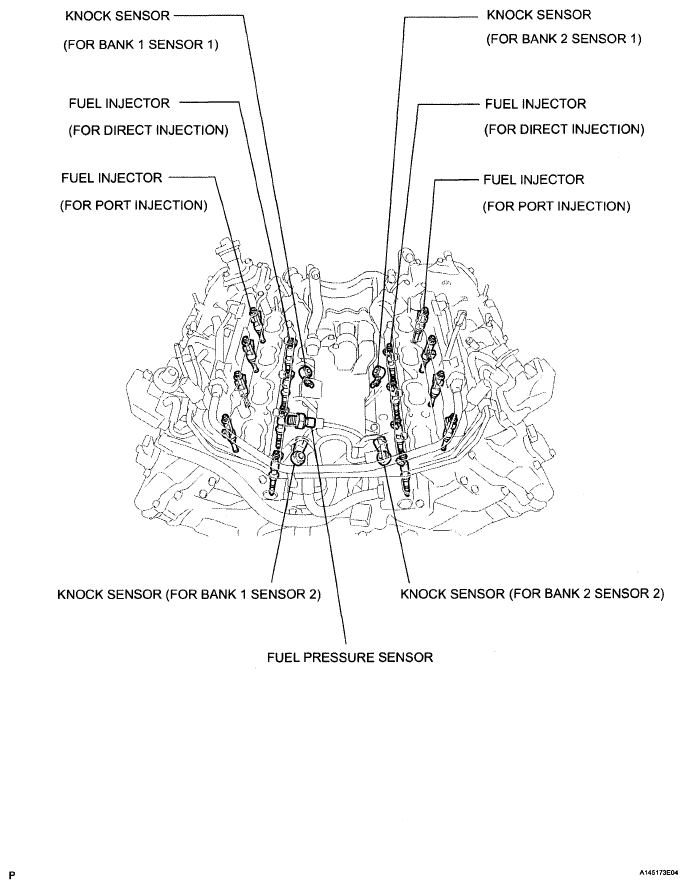

Fig 4: Identifying SFI System Parts Location (4 Of 6)
G05803615Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

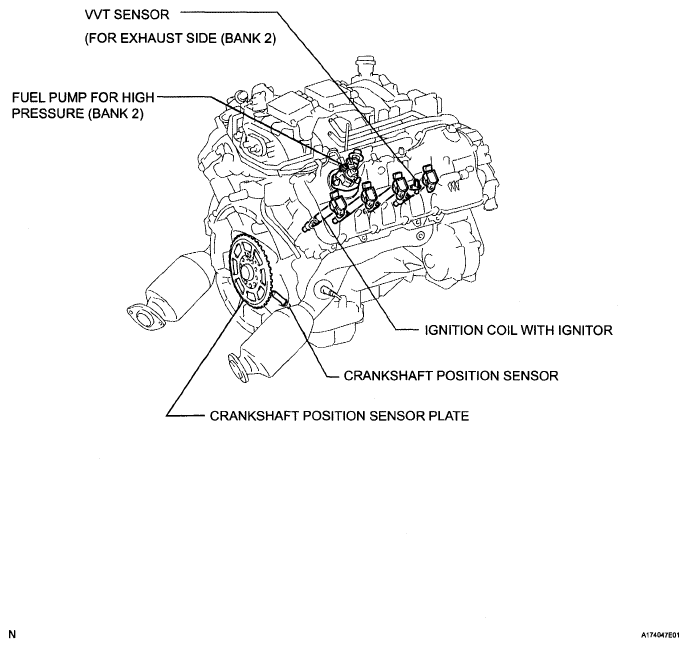

Fig 5: Identifying SFI System Parts Location (5 Of 6)
G05803616Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 6: Identifying SFI System Parts Location (6 Of 6)
G04942618Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
