DTC Check / Clear

CHECK DTC (USING TECHSTREAM)
1. Connect Techstream to the DLC3.
2. Turn the power switch ON (IG).
3. Read the DTCs by following the prompts on the tester screen.
  HINT:

  Please refer to the Techstream operator's manual for further details.
CHECK DTC (USING SST CHECK WIRE)
1. Using SST, connect terminals 13 (TC) and 4 (CG) of the DLC3.
  SST 09843-18040
2. Turn the power switch ON (IG).

  Fig 1: Identifying Connector Terminals
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Read and record any DTCs indicated by the multi-information display on the combination meter.

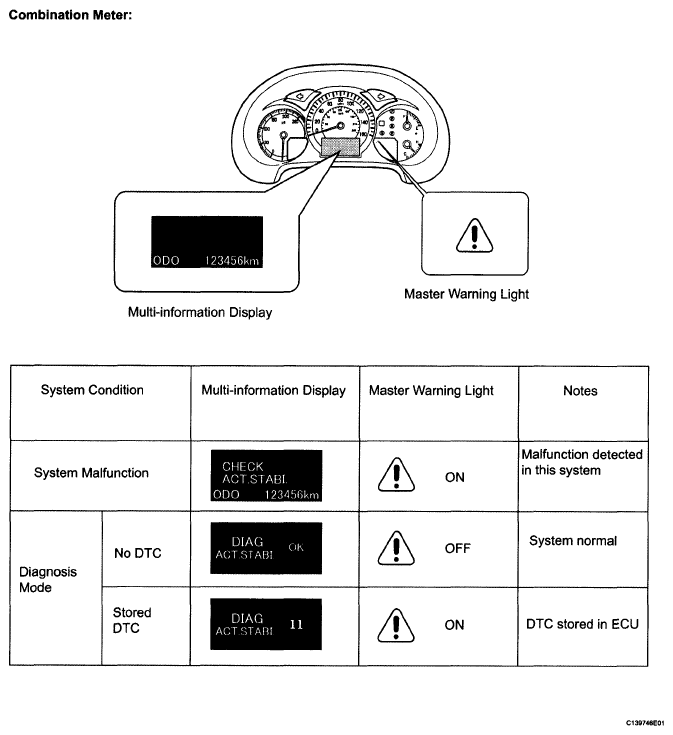

  Fig 2: Identifying Multi-Information Display And Master Warning Light
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  HINT:

  If 2 or more malfunctions are indicated at the same time, the lowest numbered DTC is displayed first.
CLEAR DTC
1. Connect Techstream to the DLC3.
2. Turn the power switch ON (IG).
3. Erase the DTCs by following the directions on the tester screen.
  HINT:

  Please refer to the Techstream operator's manual for further details.
