Cruise Control Switch Circuit: Wiring Diagram

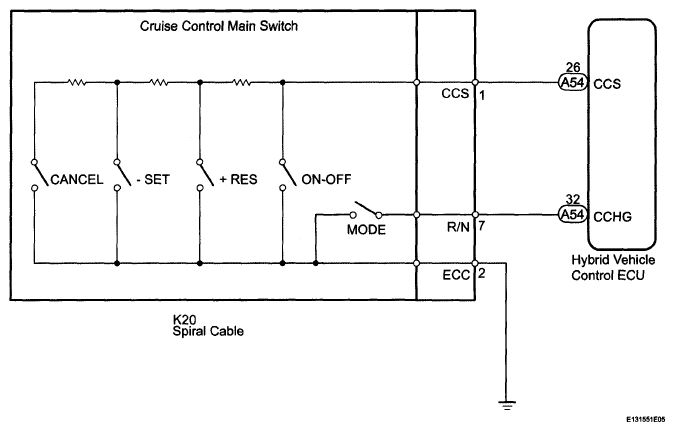

Fig 1: Cruise Control Main Switch - Wiring Diagram

G05817615

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
