Valve Body: Components

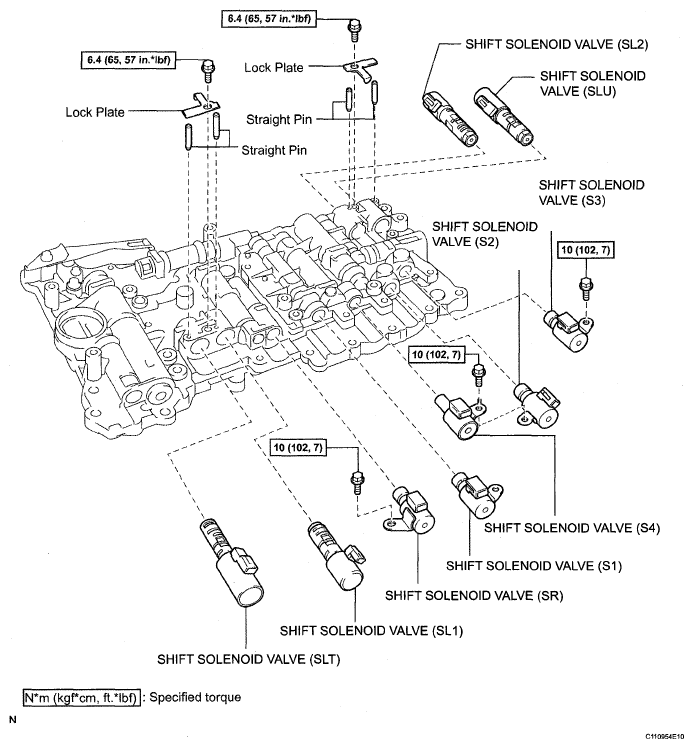

Fig 1: Valve Body Replacement Components With Torque Specifications

G05295154

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
