DTC C1305/21 Solenoid Identification Circuit: Wiring Diagram

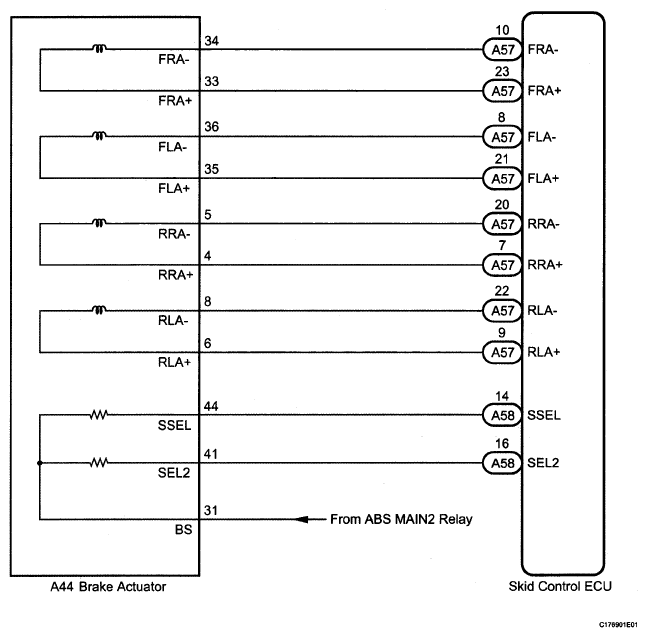

Fig 1: Brake Actuator Wiring Diagram

G05807060

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
