Inspection Procedure

1. Disconnect the A7 connector from the ECM.
2. Measure the resistance according to the value (s) in the table below.

   Standard resistance

   STANDARD RESISTANCE



   Tester Connection	Condition	Specified Condition
   A7-21 (TC)*1 - K16-13 (TC)	Always	Below 1 Ω
   A7-3 (TC)*2 - K16-13 (TC)	Always	Below 1 Ω
   HINT: *1: for 1UR-FSE *2: for 2GR-FSE

NG : REPAIR OR REPLACE WIRE HARNESS AND CONNECTOR (DLC3 - ECM)

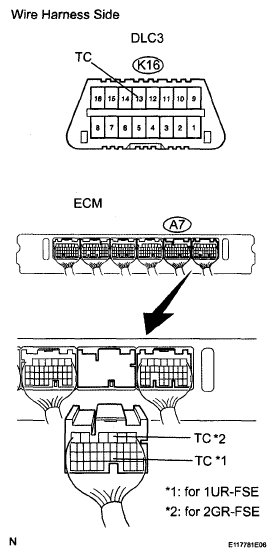

Fig 1: Checking Wire Harness (TC Of DLC3 - ECM)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

OK : Go to next step.

1. Measure the resistance according to the value (s) in the table below.

   Standard resistance

   STANDARD RESISTANCE



   Tester Connection	Condition	Specified Condition
   K16-4 (CG) - Body ground	Always	Below 1 Ω

NG : REPAIR OR REPLACE WIRE HARNESS AND CONNECTOR (DLC3 - BODY GROUND)

Fig 2: Identifying Terminal CG Of DLC3

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

OK : Go to next step.

1. Measure the resistance according to the value (s) in the table below.

   Standard resistance

   STANDARD RESISTANCE



   Tester Connection	Condition	Specified Condition
   K16-13 (TC) - Body ground	Always	10 kΩ or higher

NG : REPAIR OR REPLACE WIRE HARNESS AND EACH ECU

Fig 3: Identifying Terminal TC Of DLC3

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

OK : PROCEED TO NEXT CIRCUIT INSPECTION SHOWN IN PROBLEM SYMPTOMS TABLE
