Inspection Procedure

1. Disconnect the A7 ECM connector.
2. Measure the resistance of the wire harness side connectors.

   Standard resistance

   STANDARD RESISTANCE



   Tester Connection	Condition	Specified Condition
   A7-21 (TC)*1 - K16-13 (TC)	Always	Below 1 Ω
   A7-3 (TC)*2 - K16-13 (TC)	Always	Below 1 Ω
   HINT: *1: for 1UR-FSE *2: for 2GR-FSE

NG : REPAIR OR REPLACE HARNESS OR CONNECTOR (DLC3 - ECM)

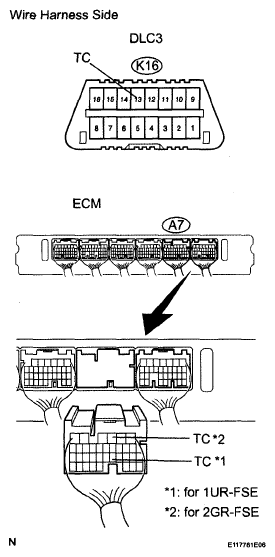

Fig 1: Checking Wire Harness (TC Of DLC3 - ECM)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

OK : Go to next step.

1. Measure the resistance of the connector.

   Standard resistance

   STANDARD RESISTANCE



   Tester Connection	Condition	Specified Condition
   K16-4 (CG) - Body ground	Always	Below 1 Ω

NG : REPAIR OR REPLACE HARNESS OR CONNECTOR (DLC3 - BODY GROUND)

Fig 2: Identifying Terminal CG Of DLC3

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

OK : Go to next step.

1. Measure the resistance of the connector.

   Standard resistance

   STANDARD RESISTANCE



   Tester Connection	Condition	Specified Condition
   K16-13 (TC) - Body ground	Always	10 kΩ or higher

NG : REPAIR OR REPLACE WIRE HARNESS OR EACH ECU

Fig 3: Identifying Terminal TC Of DLC3

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

OK : REPLACE ECM
