Inspection Procedure

WARNING: This page is about a different car, the 2007 Lexus ES 350. However, it is still accessible from the selected car via links, so may be relevant.
  1. CHECK HARNESS AND CONNECTOR (RADIO RECEIVER - STEREO JACK ADAPTER (AUDIO TERMINAL))
    1. Disconnect the connectors from the stereo jack adapter (audio terminal) and radio receiver.
    2. Measure the resistance according to the value(s) in the table below.

      Standard resistance

      RESISTANCE SPECIFICATION

      Tester Connection Condition Specified Condition
      AUXO - AUXI Always Below 1 Ω
      ASGN - ASGN Always Below 1 Ω
      ARO - ARI Always Below 1 Ω
      ALO - ALI Always Below 1 Ω
      AUXO - Body ground Always 10 kΩ or higher
      ARO - Body ground Always 10 kΩ or higher
      ALO - Body ground Always 10 kΩ or higher

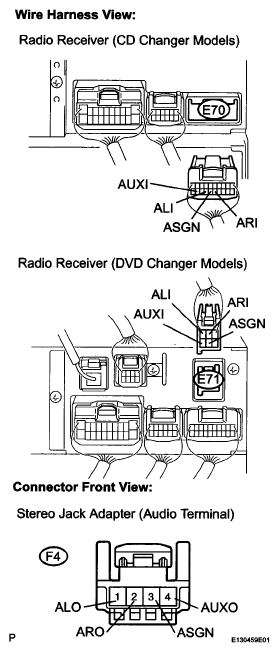

    Fig 1: Identifying Stereo Jack Adapter (Audio Terminal) And Radio Receiver Connector Terminal
    G05252977Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    NG: REPAIR OR REPLACE HARNESS OR CONNECTOR

    OK: PROCEED TO NEXT CIRCUIT INSPECTION SHOWN IN PROBLEM SYMPTOMS TABLE
