Power Seat for Front Passenger's Seat with Memory: Notes

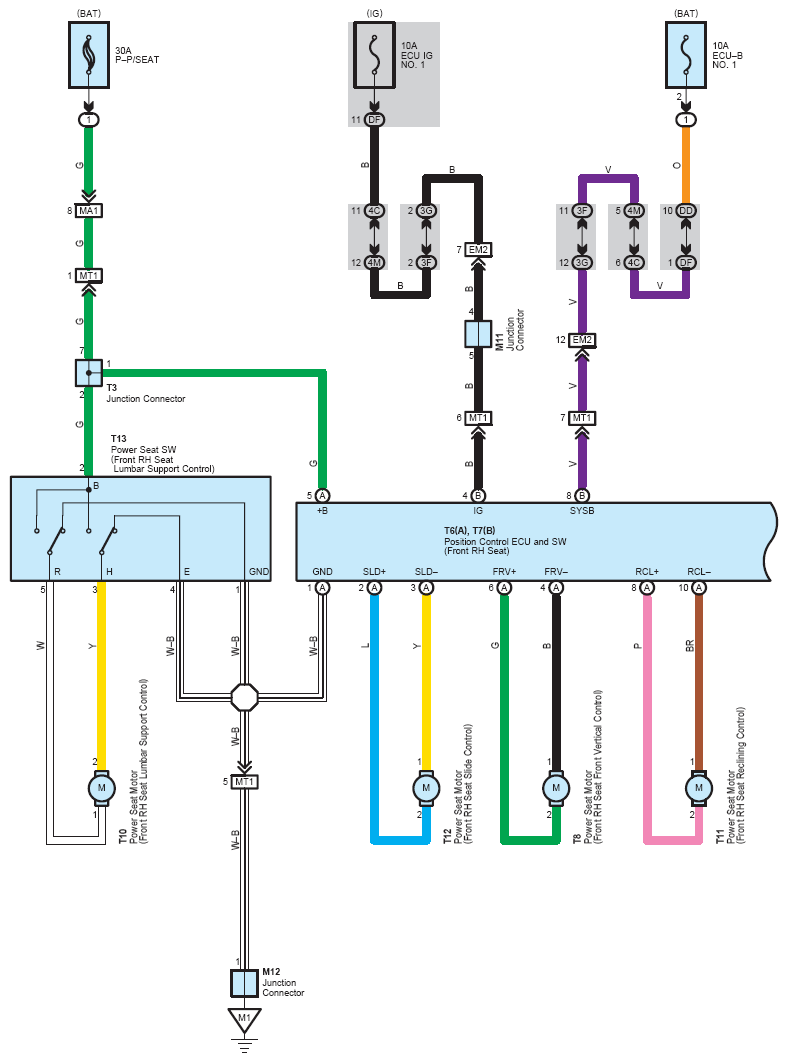

Fig 1: Power Seat For Front Passenger's Seat With Memory - Circuit Diagram (1 Of 2)
G07619273Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

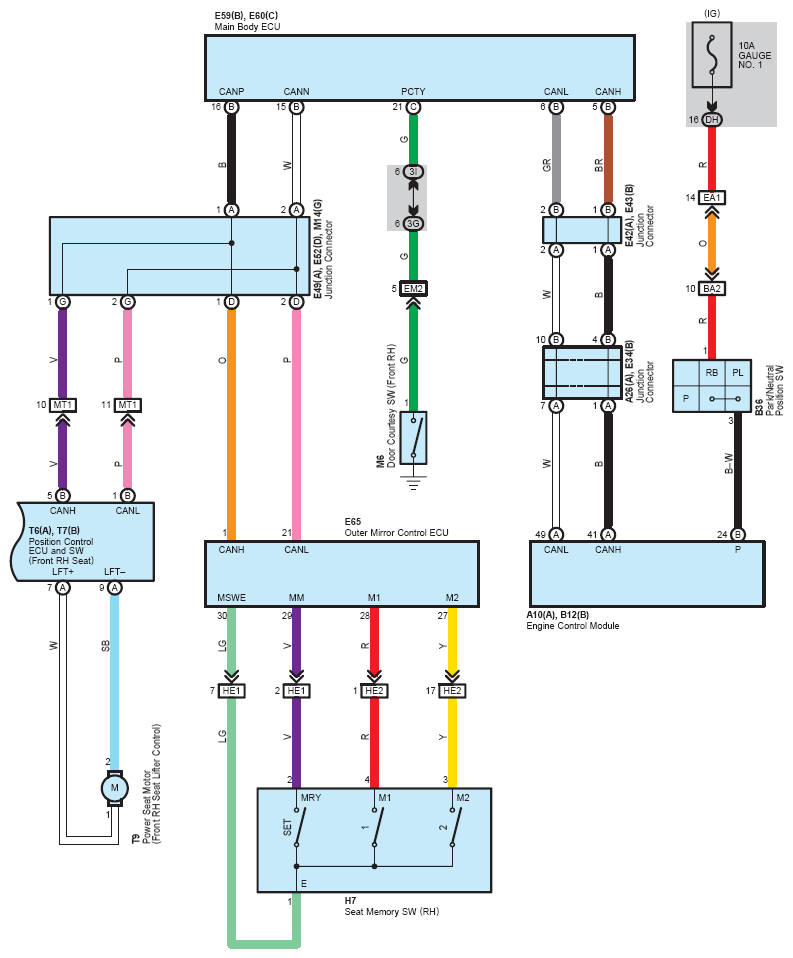

Fig 2: Power Seat For Front Passenger's Seat With Memory - Circuit Diagram (2 Of 2)
G07619274Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
