System Diagram

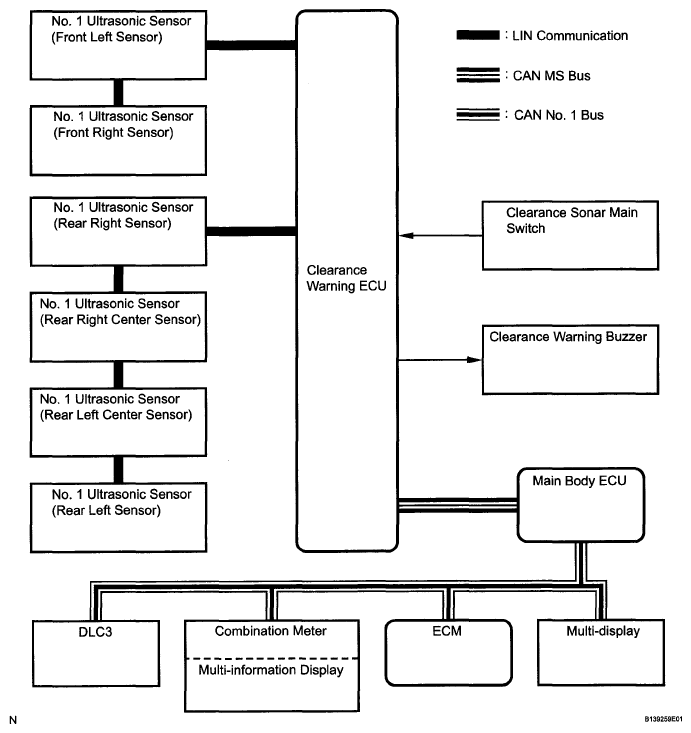

Fig 1: Identifying Intuitive Parking Assist System Diagram

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Input signal to clearance warning ECU:

ECU CONNECTOR TERMINAL DESCRIPTION CHART

Transmitting ECU (transmitter)	Signal	Communication Method
Combination Meter	Vehicle speed signal	CAN
ECM	Shift position signal	CAN
Multi-display	Clearance sonar system setting change signal	CAN

Output signal from clearance warning ECU:

ECU CONNECTOR TERMINAL DESCRIPTION CHART

Receiving ECU	Signal	Communication Method
Combination Meter	Display signal	CAN
Multi-display	Display signal	CAN
