DTC P2111 Throttle Actuator Control System - Stuck Open; DTC P2112 Throttle Actuator Control System - Stuck Closed: Wiring Diagram

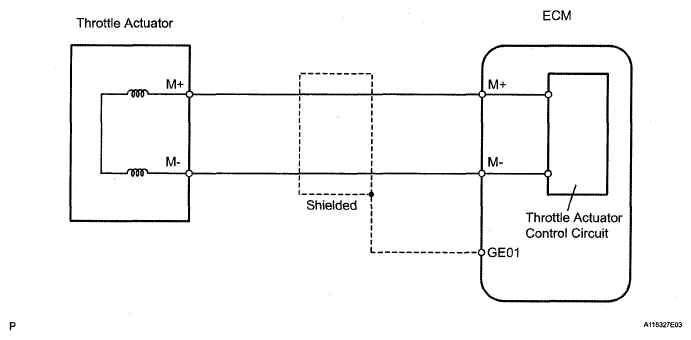

Fig 1: Throttle Actuator - Wiring Diagram
G05291482Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
