DTC P1340 Camshaft Position Sensor "A" (Bank 1 Sensor 2): Wiring Diagram

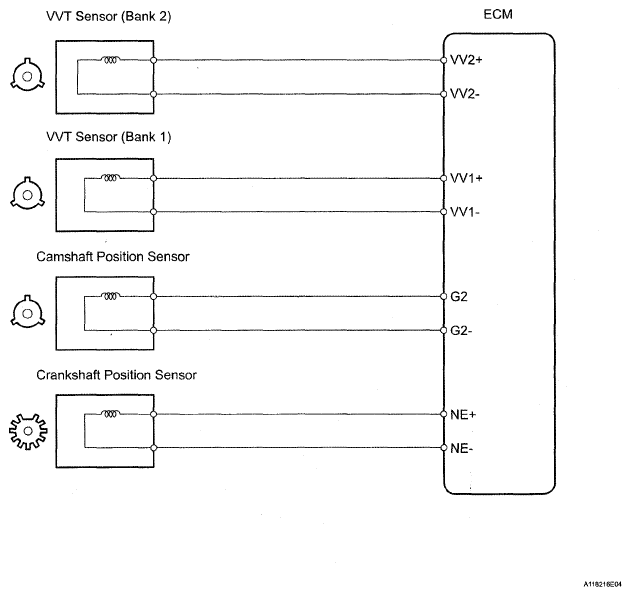

Fig 1: Crankshaft Position Sensor - Wiring Diagram

G05291473

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
