Key Reminder and Seat Belt Warning: Notes

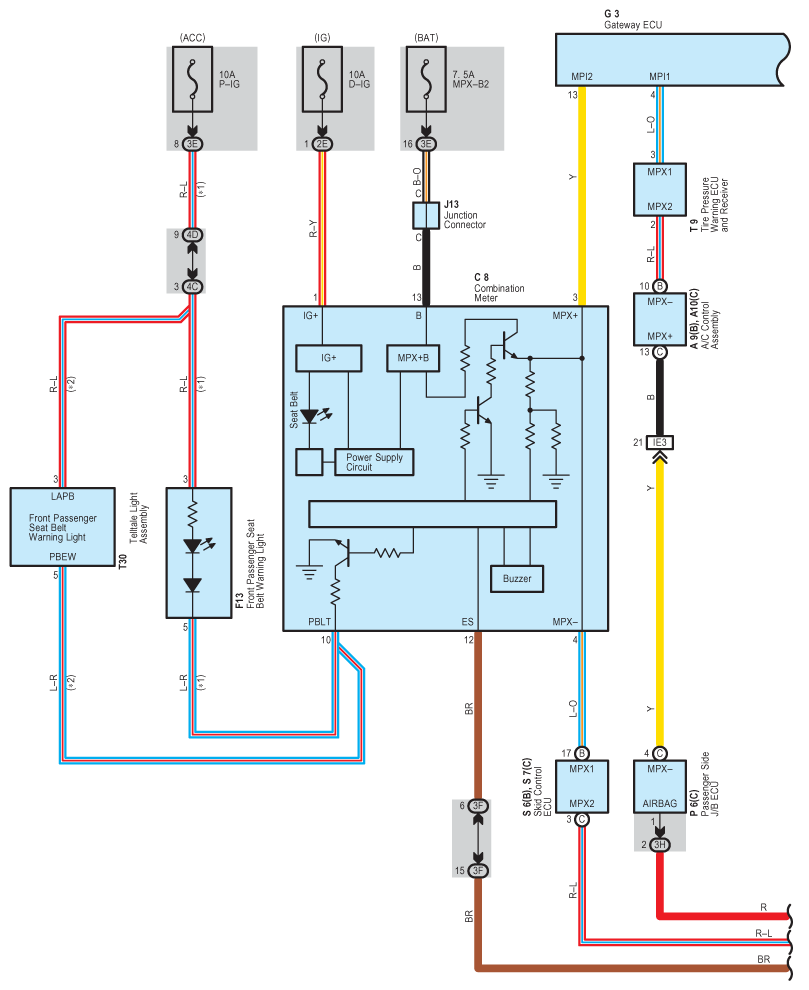

Fig 1: Key Reminder And Seat Belt Warning - Wiring Diagram (1 Of 3)
G08933853Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

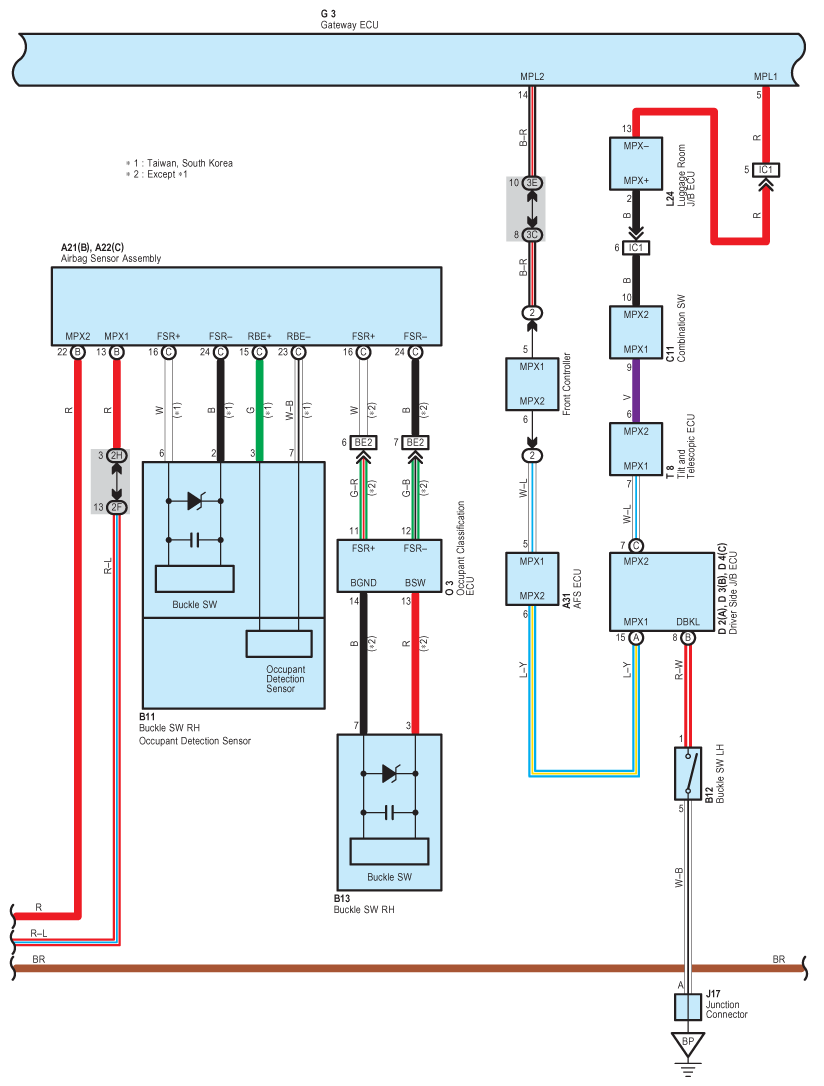

Fig 2: Key Reminder And Seat Belt Warning - Wiring Diagram (2 Of 3)
G08933854Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

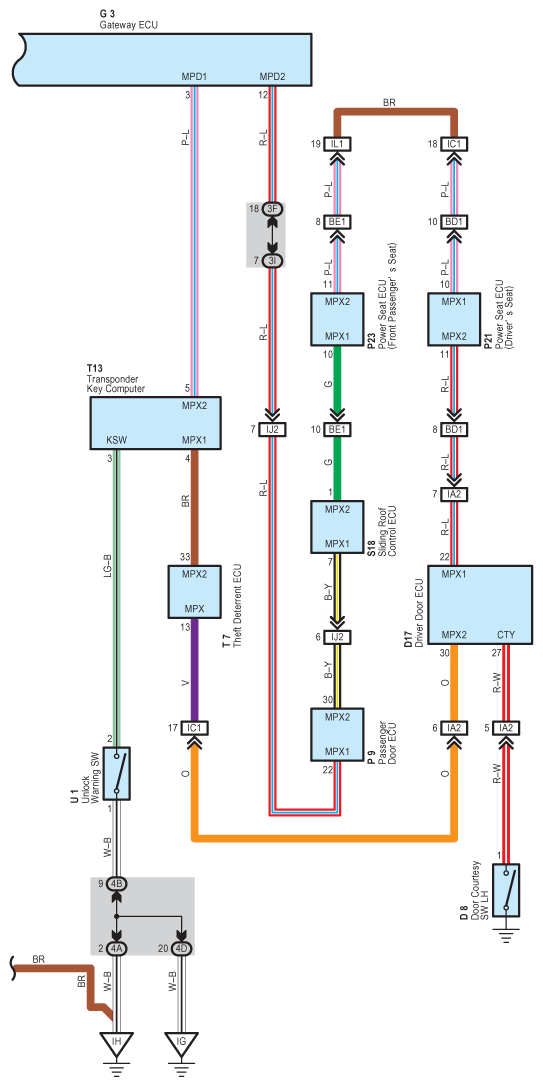

Fig 3: Key Reminder And Seat Belt Warning - Wiring Diagram (3 Of 3)
G08933855Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
