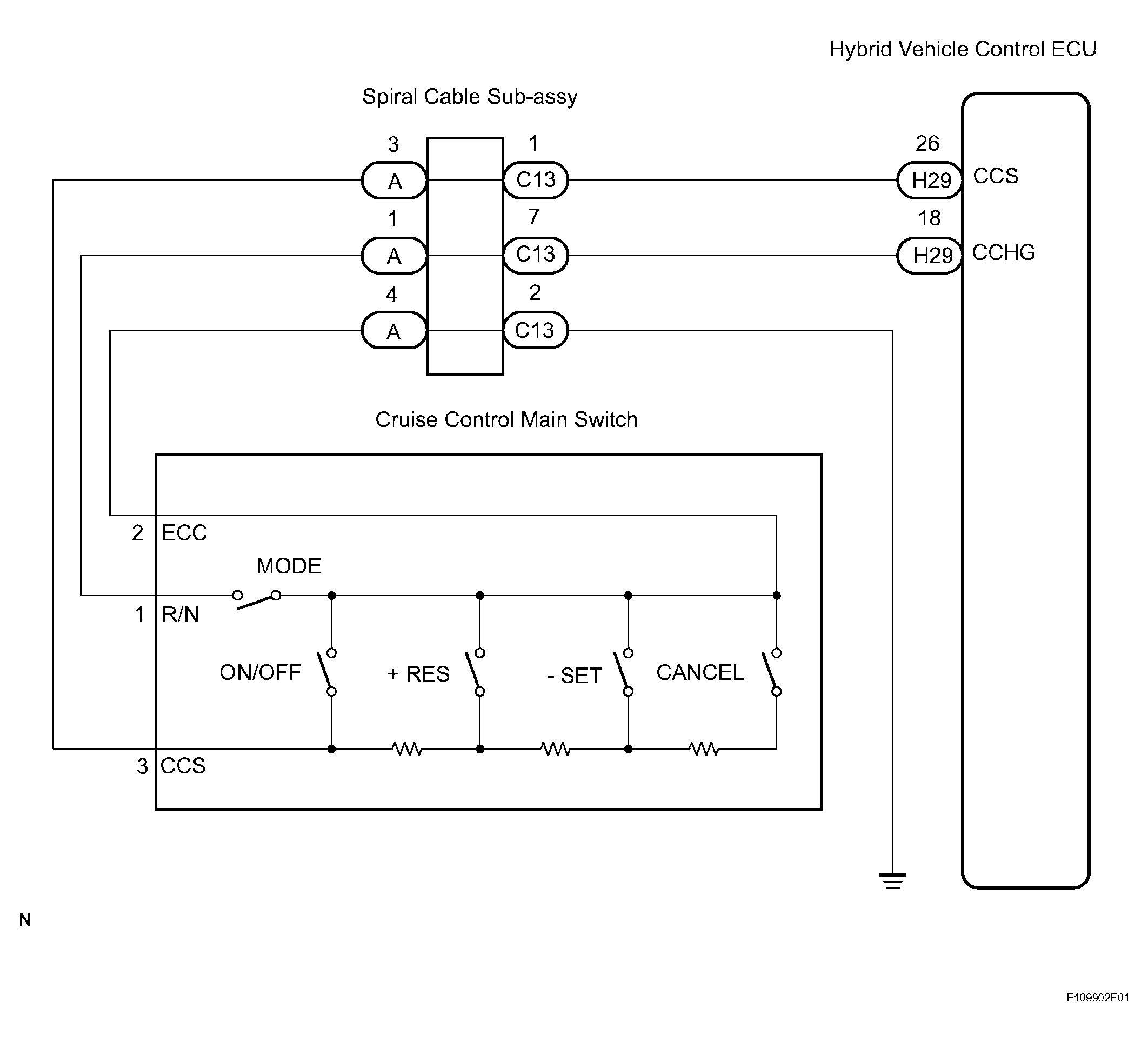

Cruise Control Switch Circuit: Wiring Diagram

1. Connect the intelligent tester to the DLC3.
2. Turn the ignition switch on, and turn the intelligent tester main switch on.
   Fig 2: Read Value Of Intelligent Tester

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Check the DATA LIST for proper functioning of the cruise control main switch.

   LASER CRUISE:

   LASER CRUISE DATA LIST



   Item	Measurement Item / Display (Range)	Normal Condition	Diagnostic Note
   MAIN SW (MAIN)	Main switch signal (Main CPU) / ON or OFF	ON: Main switch ON (Pushed on) OFF: Main switch OFF (Pushed off)	-
   CANCEL SW	CANCEL switch signal / ON or OFF	ON: CANCEL switch ON OFF: CANCEL switch OFF	-
   SET/COAST SW	-/SET switch signal / ON or OFF	ON: -/SET switch ON OFF: -/SET switch OFF	-
   RES/ACC SW	+/RES switch signal / ON or OFF	ON: +/RES switch ON OFF: +/RES switch OFF	-

   OK:

   When cruise control main switch operation is performed, the result will be same as above.

   Result:

   DTC RESULT REFERENCE



   Result	Proceed to
   OK	A
   NG (all items are defective)	B
   NG (one to four items are defective)	C

A : PROCEED TO NEXT CIRCUIT INSPECTION SHOWN IN  PROBLEM SYMPTOMS TABLE

C : REPLACE CRUISE CONTROL MAIN SWITCH

B : GO TO NEXT STEP

1. Disconnect the cruise control main switch connector.

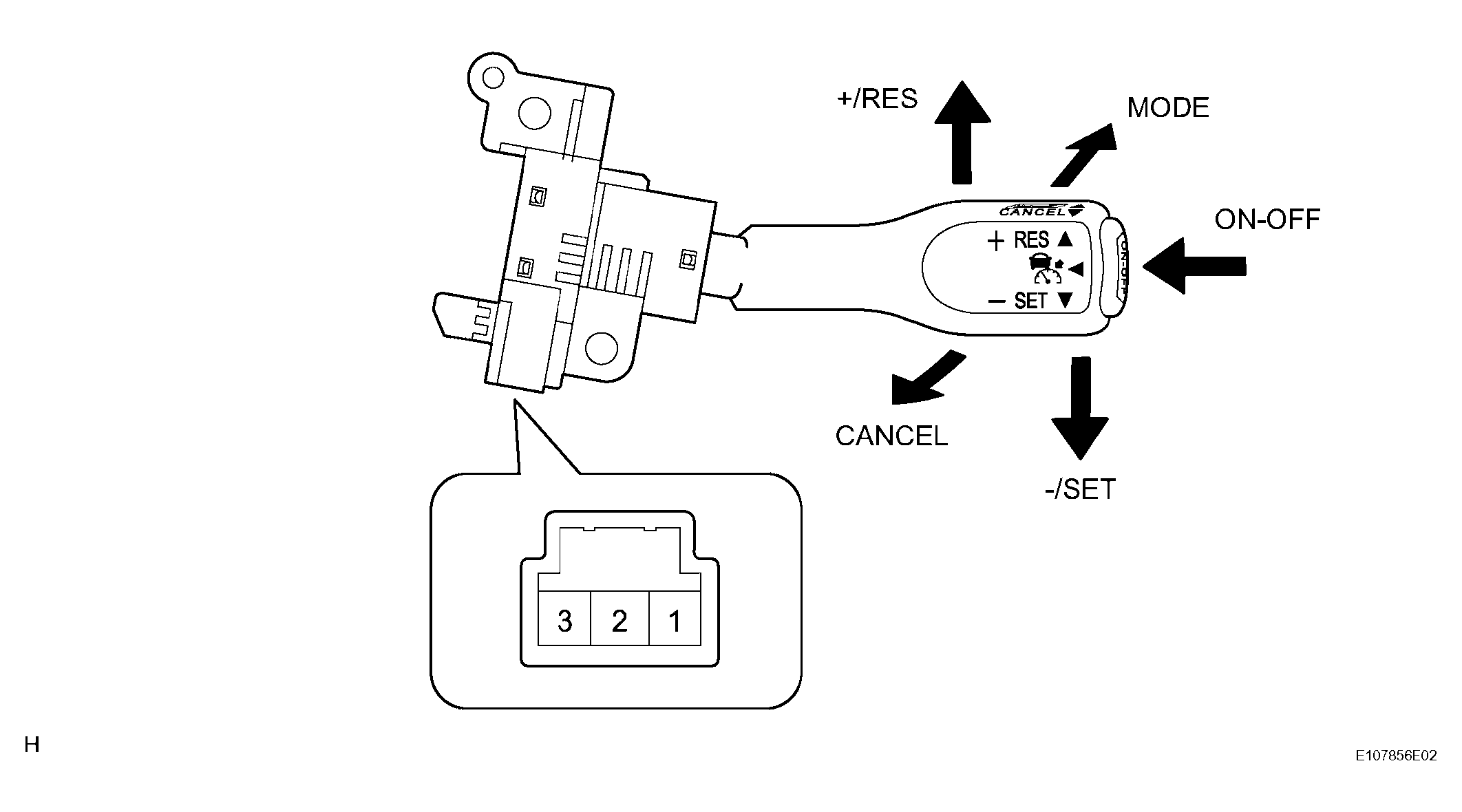

   Fig 3: Identifying Terminals Of Cruise Control Main Switch

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Measure the resistance according to the value(s) in the table below.

   Standard resistance

   TESTER CONNECTION AND SPECIFIED CONDITION



   Tester Connection	Switch Condition	Specified Condition
   1 - 2, 1 - 3	Neutral	10 kΩ or higher
   1 - 3	+/RES	235 to 245 Ω
   1 - 3	-/SET	620 to 640 Ω
   1 - 3	CANCEL	1510 to 1570 Ω
   1 - 3	Main Switch OFF	10 kΩ or higher
   1 - 3	Main Switch OFF	Below 1 Ω
   1 - 2	MODE	Below 1 Ω

NG : REPLACE CRUISE CONTROL MAIN SWITCH

OK : GO TO NEXT STEP

1. Disconnect the spiral cable connector.
2. Measure the resistance according to the value(s) in the table below.

   Standard resistance

   TESTER CONNECTION AND SPECIFIED CONDITION



   Tester Condition	Specified Condition
   A-1 - C13-7	Below 1 Ω
   A-3 - C13-1	Below 1 Ω
   A-4 - C13-2	Below 1 Ω

NG : REPLACE SPIRAL CABLE

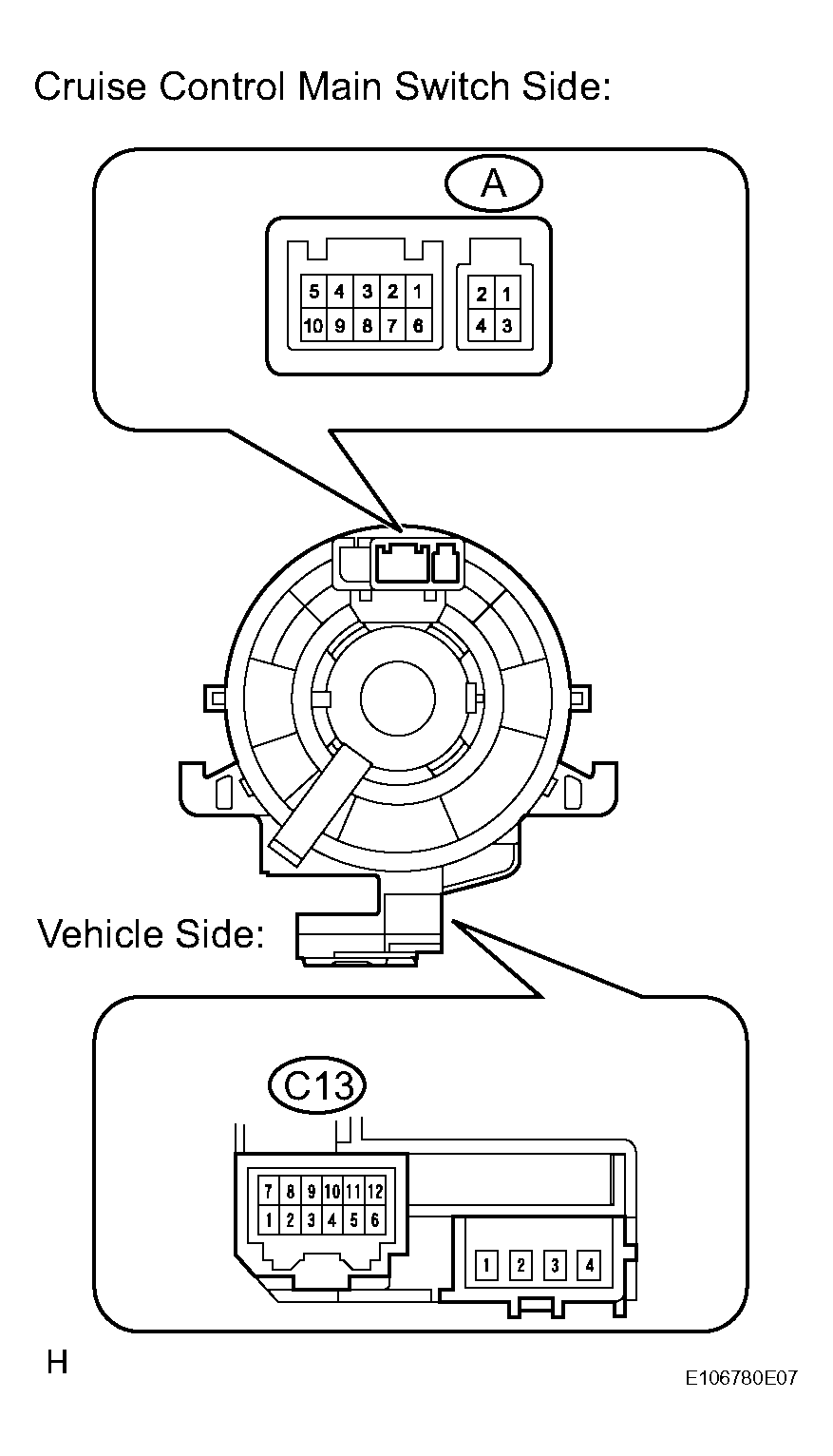

Fig 4: Identifying Terminals Of Spiral Cable

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

OK : GO TO NEXT STEP

1. Measure the resistance according to the value(s) in the table below.

   Standard resistance

   TESTER CONNECTION AND SPECIFIED CONDITION



   Tester Connection	Condition	Specified Condition
   C13-1 - H29-26 (CCS)	Always	Below 1 Ω
   C13-7 - H29-18 (CCHG)	Always	Below 1 Ω
   C13-1 - Body ground	Always	10 kΩ or higher
   C13-7 - Body ground	Always	10 kΩ or higher

NG : REPAIR OR REPLACE HARNESS OR CONNECTOR

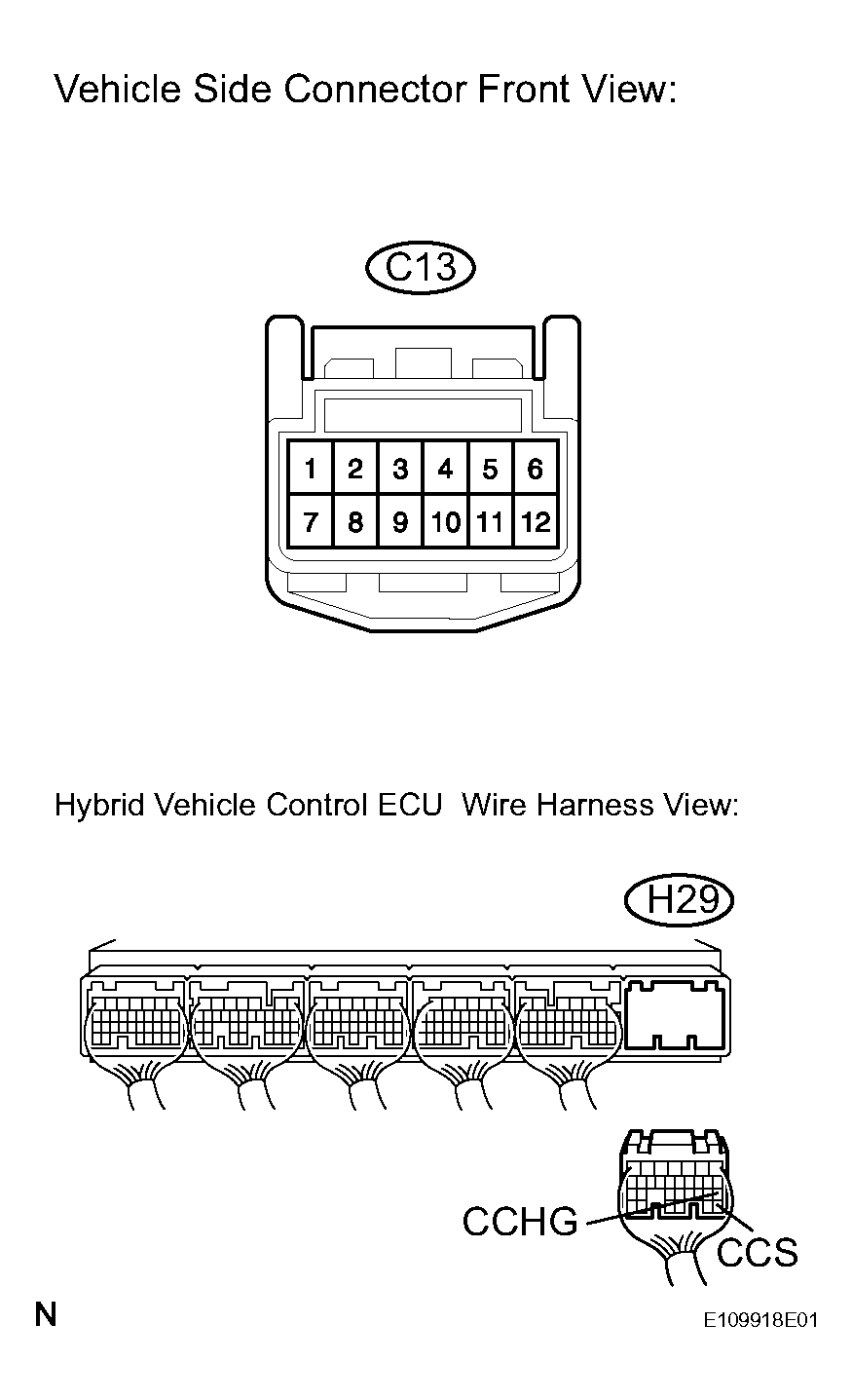

Fig 5: Identifying Terminals Of Connector C13

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

OK : GO TO NEXT STEP

1. Measure the resistance according to the value(s) in the table below.

   Standard resistance

   TESTER CONNECTION AND SPECIFIED CONDITION



   Tester Connection	Condition	Specified Condition
   C13-2 - Body ground	Always	Below 1 Ω

NG : REPAIR OR REPLACE HARNESS OR CONNECTOR

Fig 6: Identifying Terminals Of Connector C13

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

OK : REPLACE HYBRID VEHICLE CONTROL ECU
