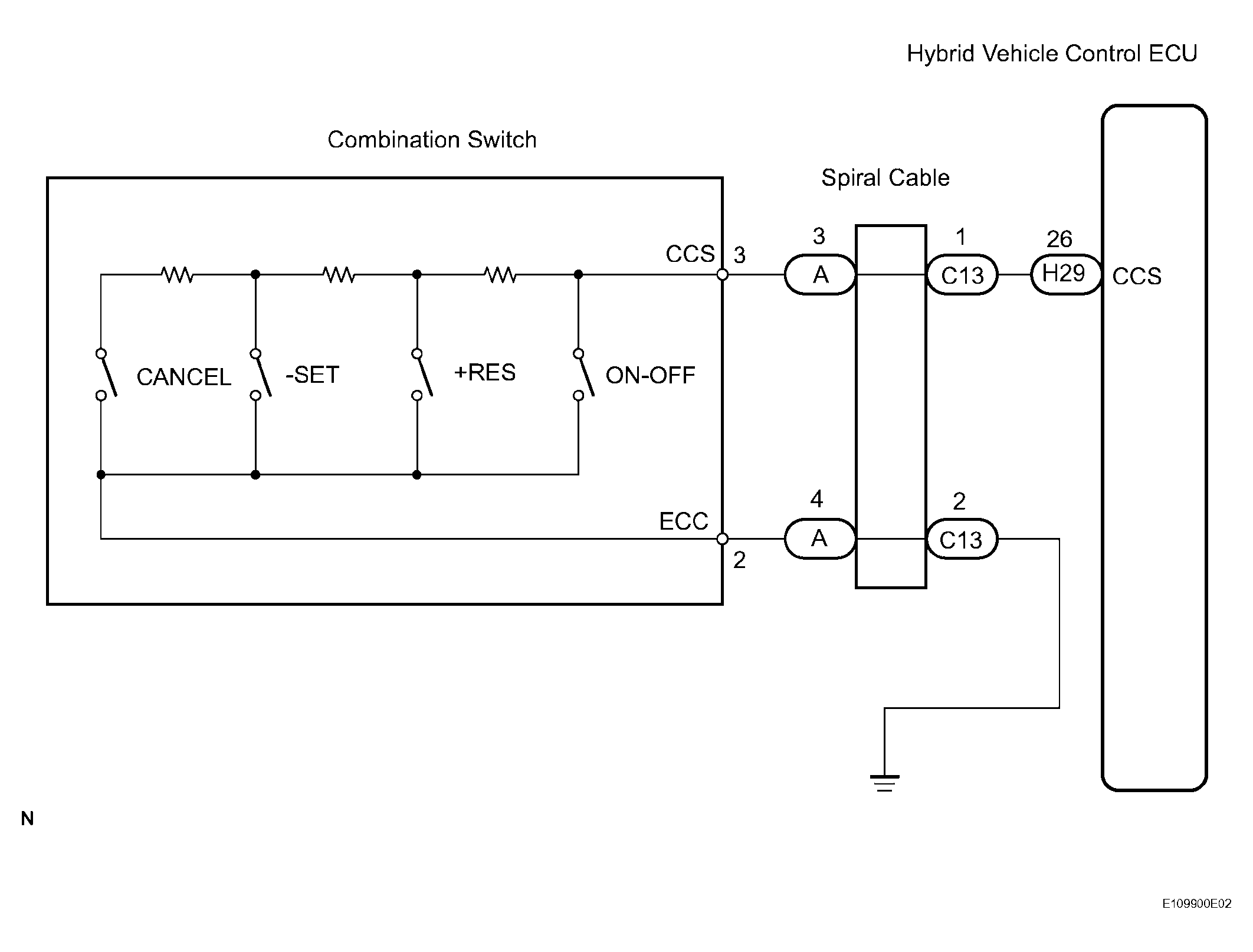

Cruise Control Switch Circuit: Wiring Diagram

1. Connect the intelligent tester to the DLC3.
2. Turn the ignition switch on, and turn the intelligent tester main switch on.
3. Check the DATA LIST for proper functioning of the cruise control main switch.
   Fig 2: Turning Ignition Switch On, And Intelligent Tester Main Switch On

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Hybrid Vehicle Control ECU (Cruise Control):

   HYBRID VEHICLE CONTROL ECU (CRUISE CONTROL) DATA LIST



   Item	Measurement Item / Display (Range)	Normal Condition	Diagnostic Note
   MAIN SW (MAIN)	Main switch signal (Main CPU) / ON or OFF	ON: Main switch ON (Pushed on) OFF: Main switch OFF (Pushed off)	-
   CANCEL SW	CANCEL switch signal / ON or OFF	ON: CANCEL switch ON OFF: CANCEL switch OFF	-
   SET/COAST SW	-/SET switch signal / ON or OFF	ON: -/SET switch ON OFF: -/SET switch OFF	-
   RES/ACC SW	+/RES switch signal / ON or OFF	ON: +/RES switch ON OFF: +/RES switch OFF	-

   OK:

   When cruise control main switch operation is performed the results will be same as above.

   Result:

   DTC RESULT REFERENCE



   Result	Proceed to
   OK	A
   NG (All items are defective.)	B
   NG (One to four items are defective.)	C

A : PROCEED TO NEXT CIRCUIT INSPECTION SHOWN IN  PROBLEM SYMPTOMS TABLE

C : REPLACE CRUISE CONTROL MAIN SWITCH

B : GO TO NEXT STEP

1. Disconnect the cruise control main switch connector.
2. Measure the resistance according to the value(s) in the table below.

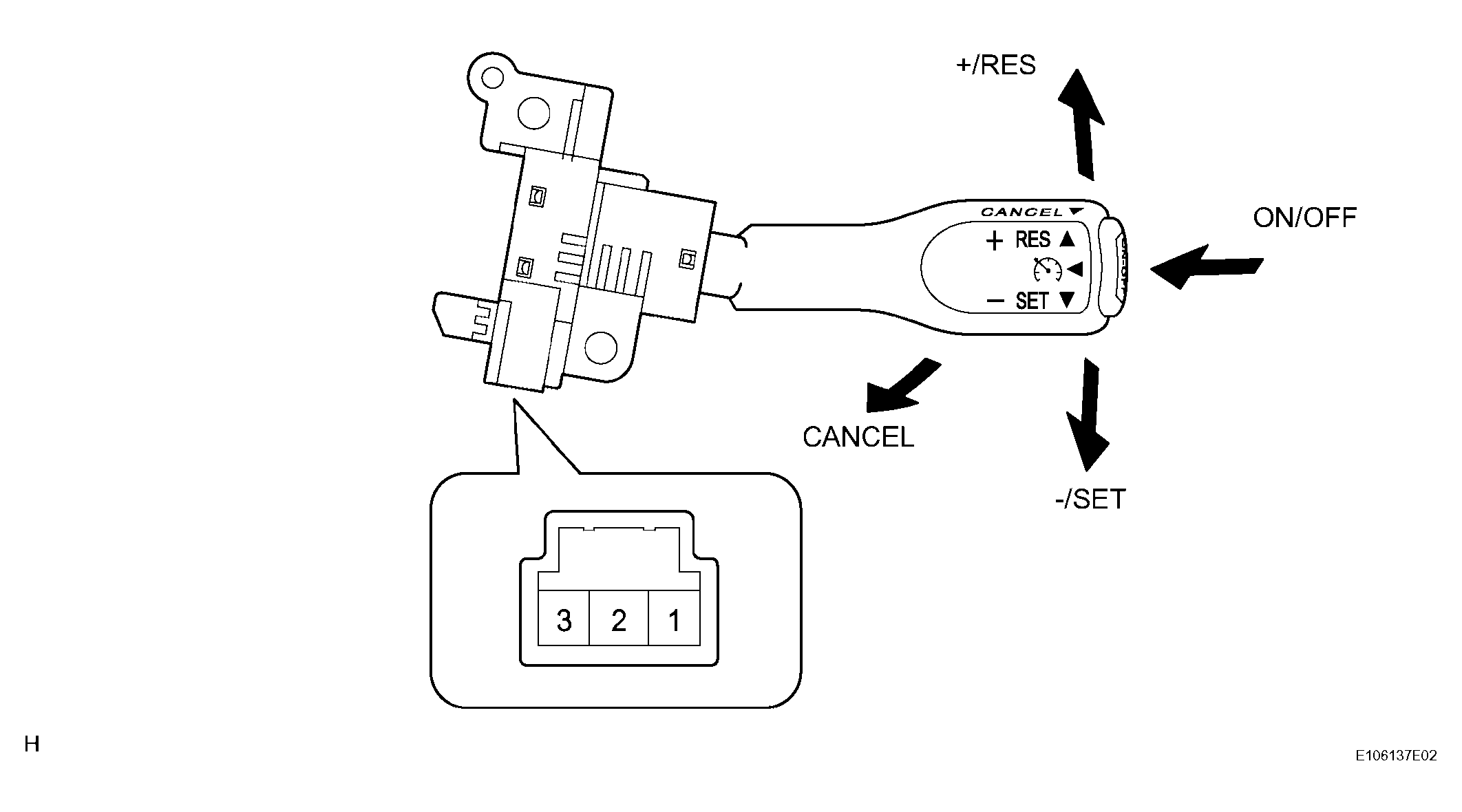

   Fig 3: Identifying Terminals Of Cruise Control Main Switch Connector

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Standard resistance

   TESTER CONNECTION AND SPECIFIED CONDITION



   Tester Connection	Switch Condition	Specified Condition
   1 - 3	Neutral	10 kΩ or higher
   1 - 3	+/RES	235 to 245 Ω
   1 - 3	-/SET	620 to 640 Ω
   1 - 3	CANCEL	1,510 to 1,570 Ω
   1 - 3	Main Switch OFF	10 kΩ or higher
   1 - 3	Main Switch ON	Below 1 Ω

NG : REPLACE CRUISE CONTROL MAIN SWITCH

OK : GO TO NEXT STEP

1. Disconnect the spiral cable connectors.
2. Measure the resistance according to the value(s) in the table below.

   Standard resistance

   TESTER CONNECTION AND SPECIFIED CONDITION



   Tester Connection	Specified Condition
   A-3 - C13-1	Below 1 Ω
   A-4 - C13-2	Below 1 Ω

NG : REPLACE SPIRAL CABLE

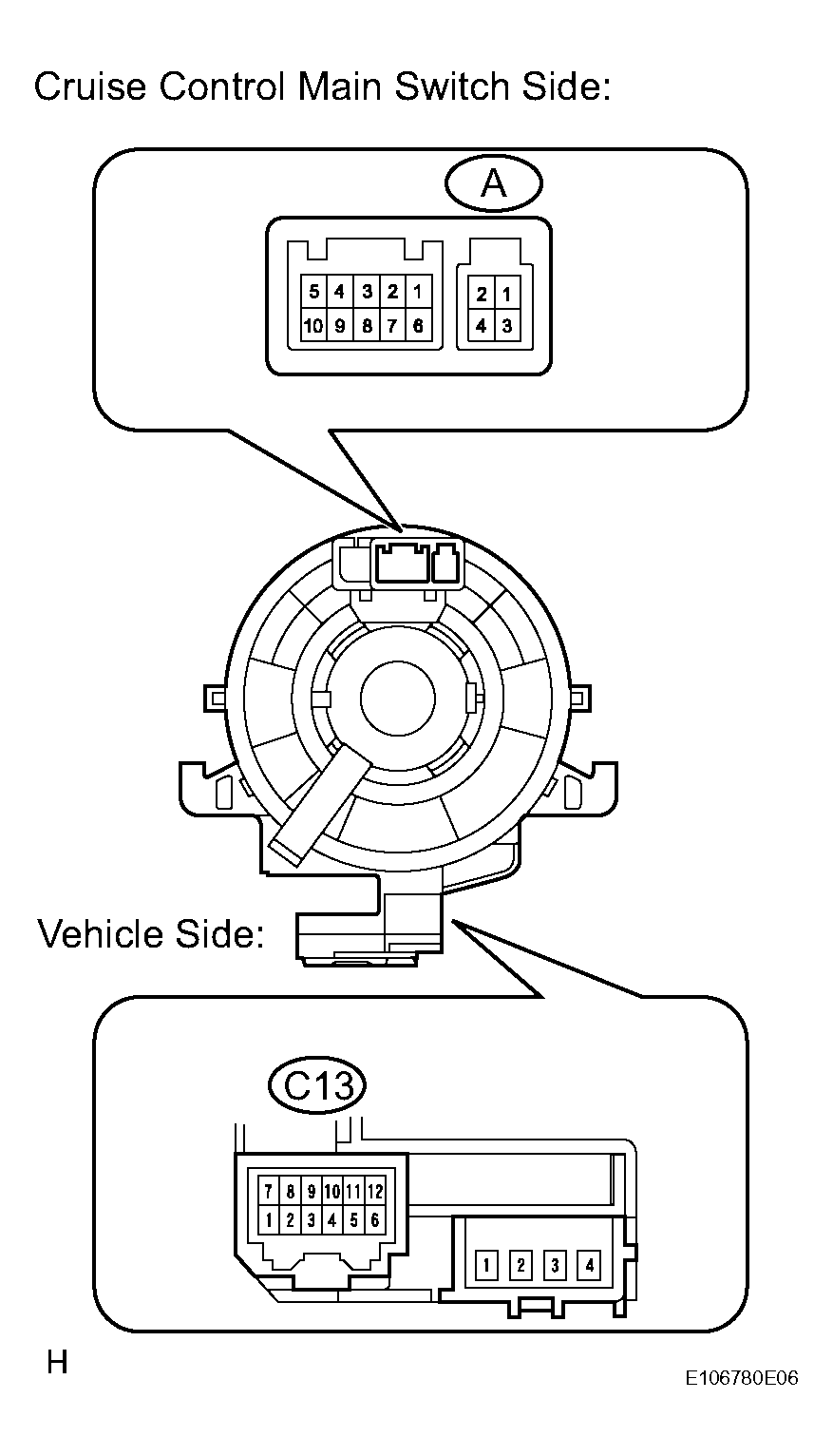

Fig 4: Identifying Terminals Of Cruise Control Main Switch

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

OK : GO TO NEXT STEP

1. Measure the resistance according to the value(s) in the table below.

   Standard resistance

   TESTER CONNECTION AND SPECIFIED CONDITION



   Tester Connection	Condition	Specified Condition
   C13-1 - H29-26 (CCS)	Always	Below 1 Ω
   H29-26 (CCS) - Body ground	Always	10 kΩ or higher
   C13-1 - Body ground	Always	Below 1 Ω

NG : REPAIR OR REPLACE HARNESS OR CONNECTOR

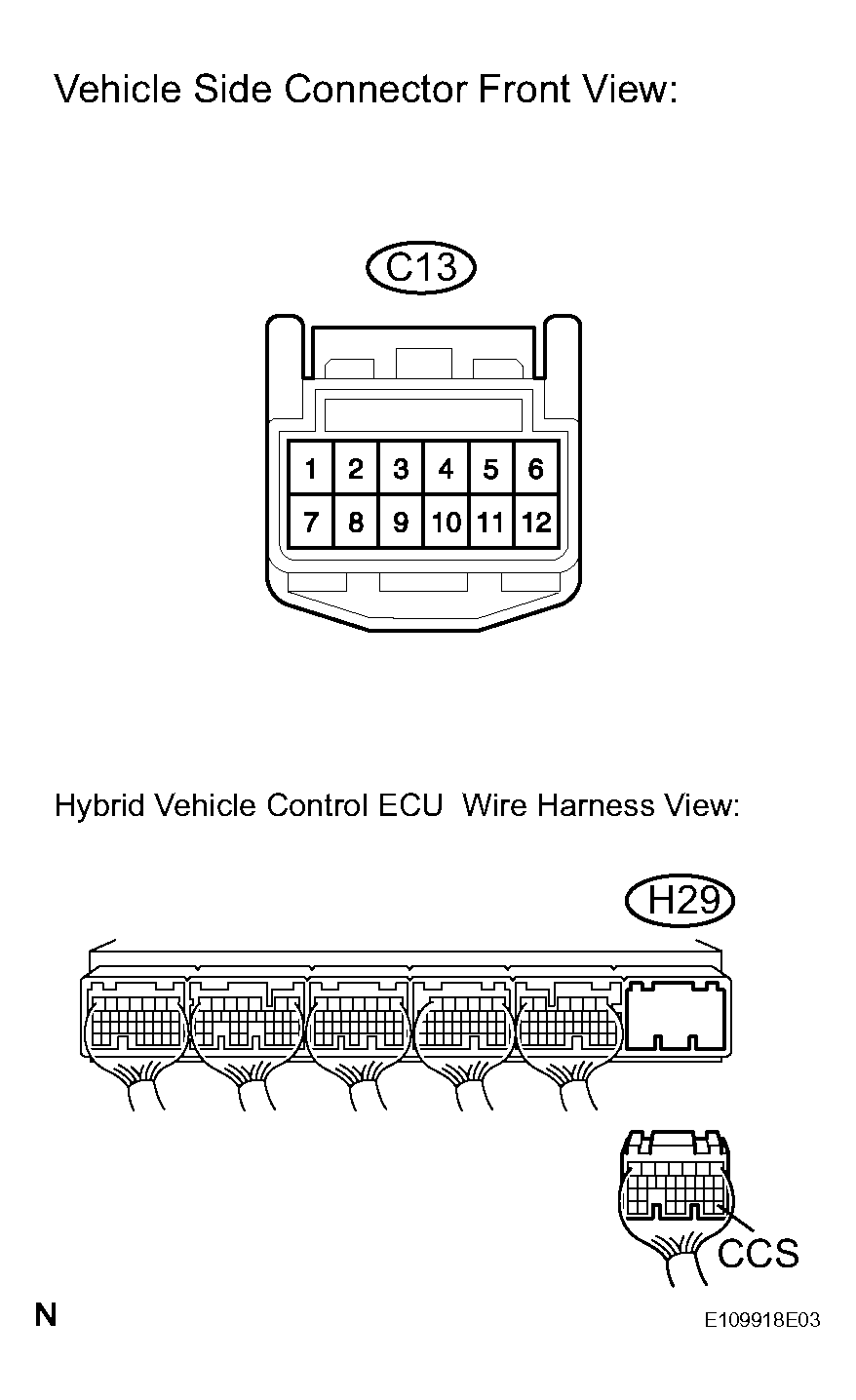

Fig 5: Identifying Terminals Of Connector C13

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

OK : PROCEED TO NEXT CIRCUIT INSPECTION SHOWN IN  PROBLEM SYMPTOMS TABLE
