Steering Pad Switch: Installation

WARNING: This page is about a different car, the 2006 Lexus RX 400h. However, it is still accessible from the selected car via links, so may be relevant.

INSTALL STEERING PAD SWITCH LH
1. Engage the 2 claws and the pin.
2. Install the steering pad switch LH with the screw.

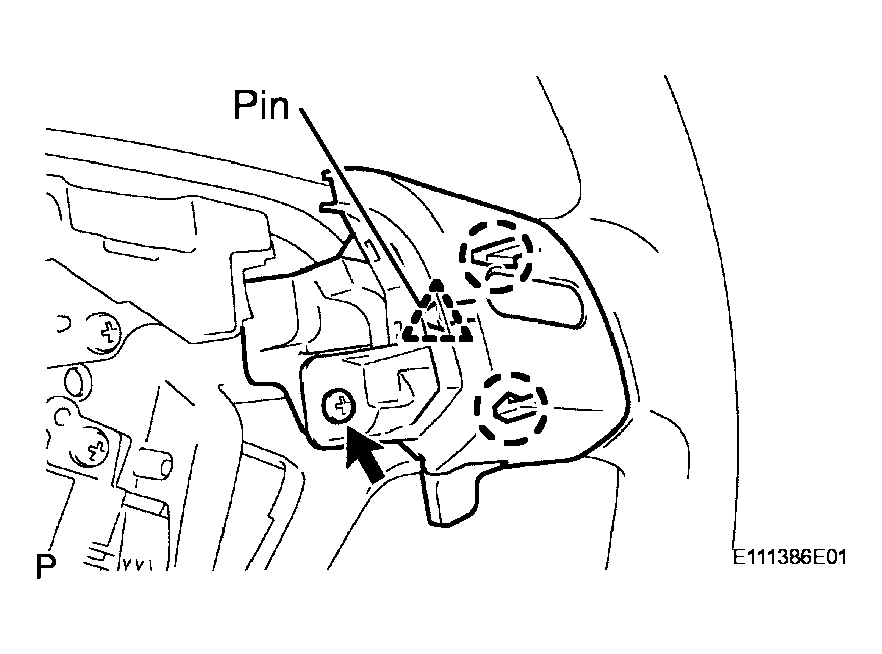

  Fig 1: Locating Claws And Pin On Steering Pad Switch LH
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Connect the connector.
INSTALL STEERING PAD SWITCH RH
1. Engage the 2 claws and the pin.
2. Install the steering pad switch RH with the screw.

  Fig 2: Locating Claws And Pin On Steering Pad Switch RH
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Connect the connector.
INSTALL STEERING PAD (See INSTALLATION )
INSTALL NO.3 STEERING WHEEL COVER LOWER (See INSTALLATION )
INSTALL NO.2 STEERING WHEEL COVER LOWER (See INSTALLATION )
CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
PERFORM INITIALIZATION
NOTE: Some systems need initialization when disconnecting the cable from the negative battery terminal. (See INITIALIZATION )
INSPECT STEERING PAD (See INSTALLATION )
INSPECT SRS WARNING LIGHT (See TERMINALS OF ECU )
